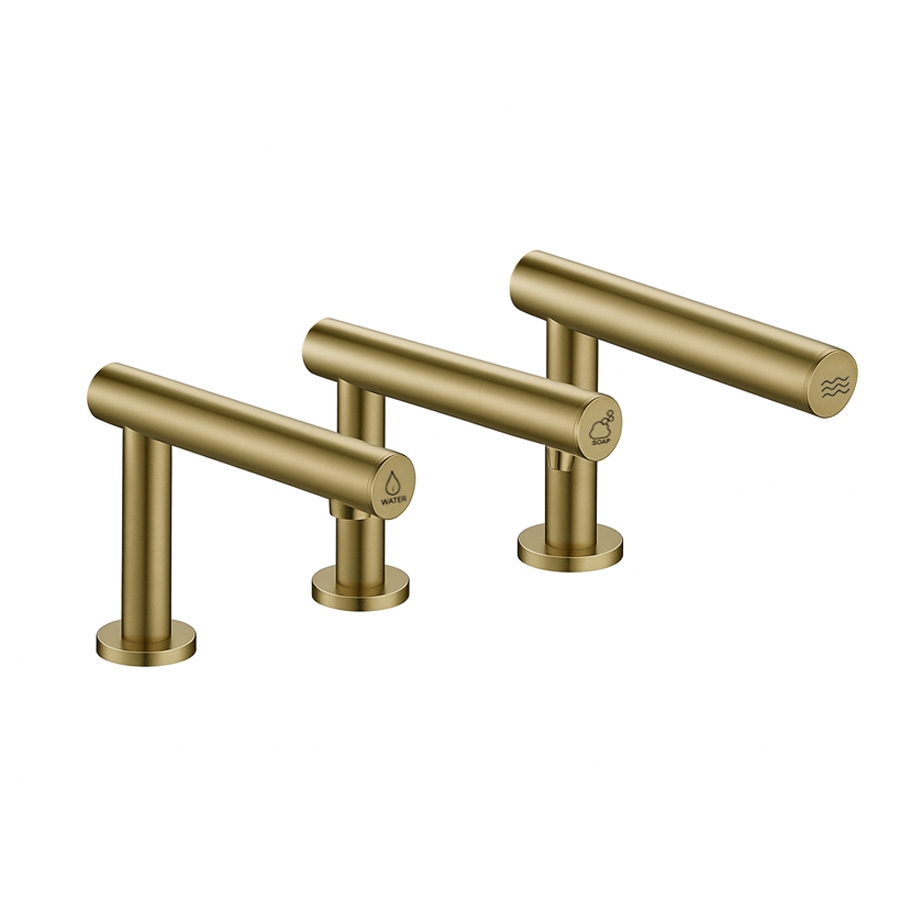

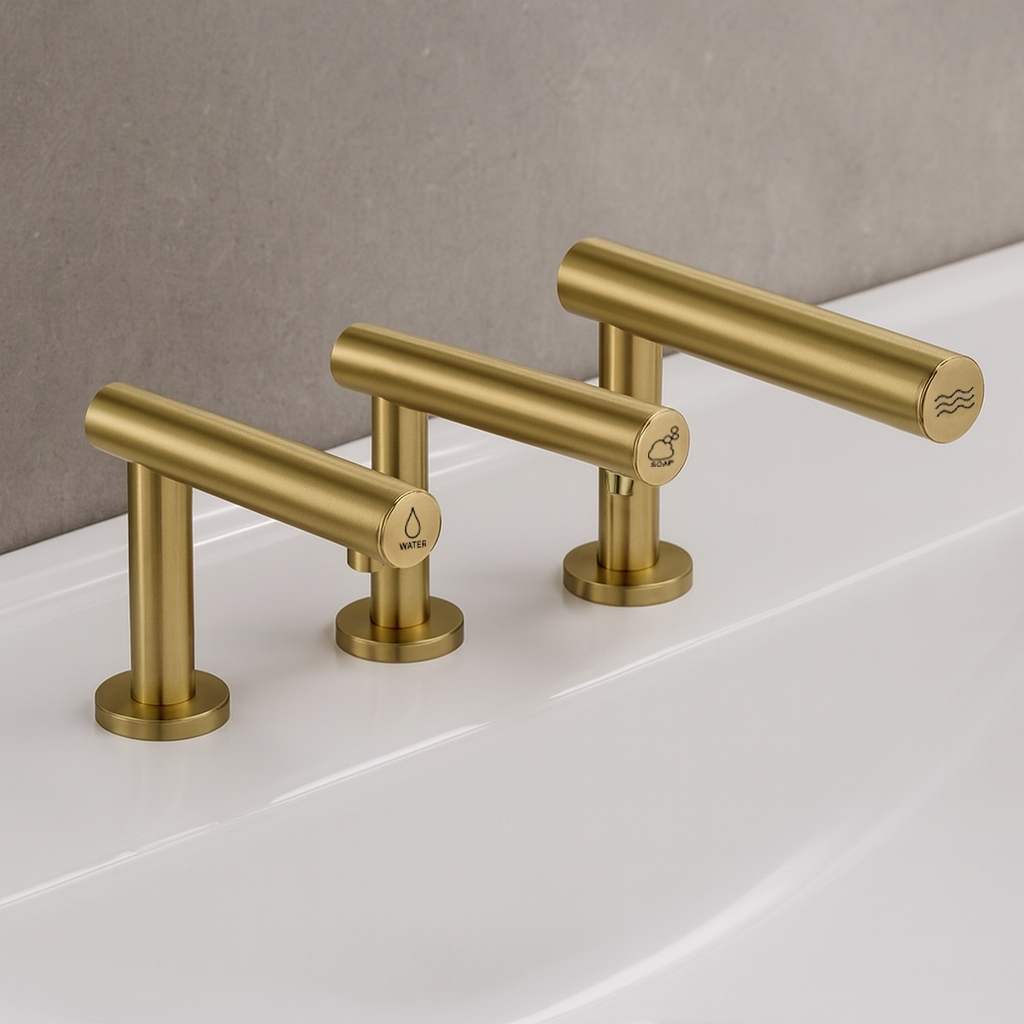

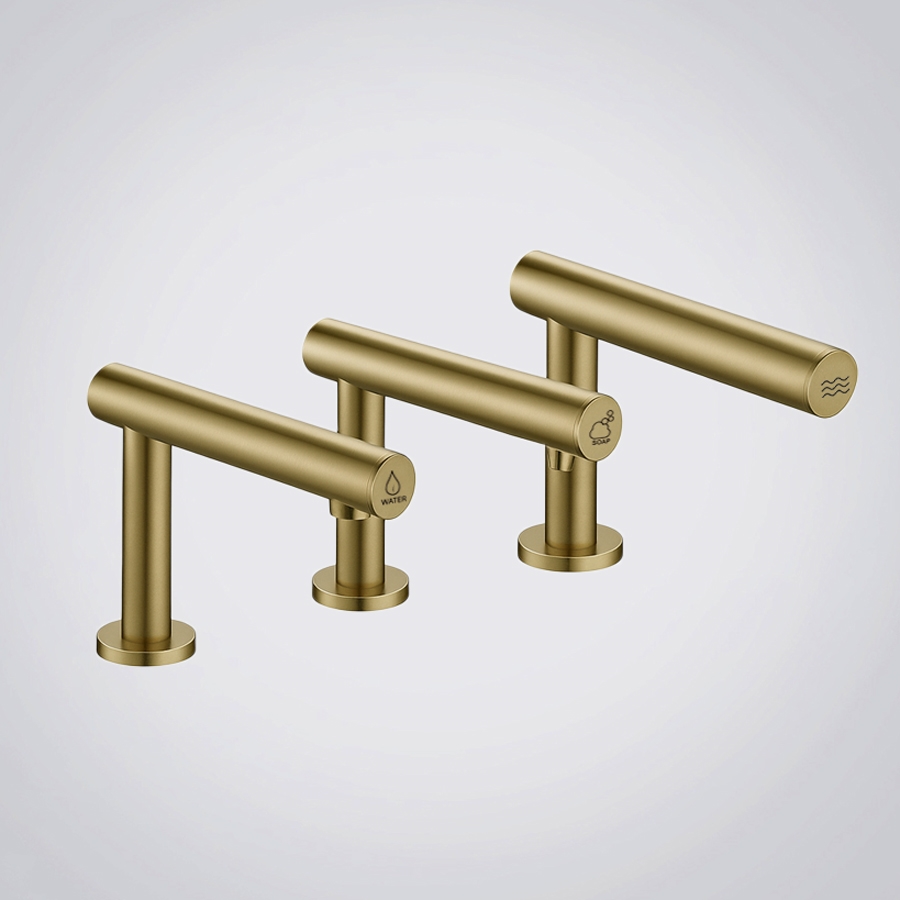

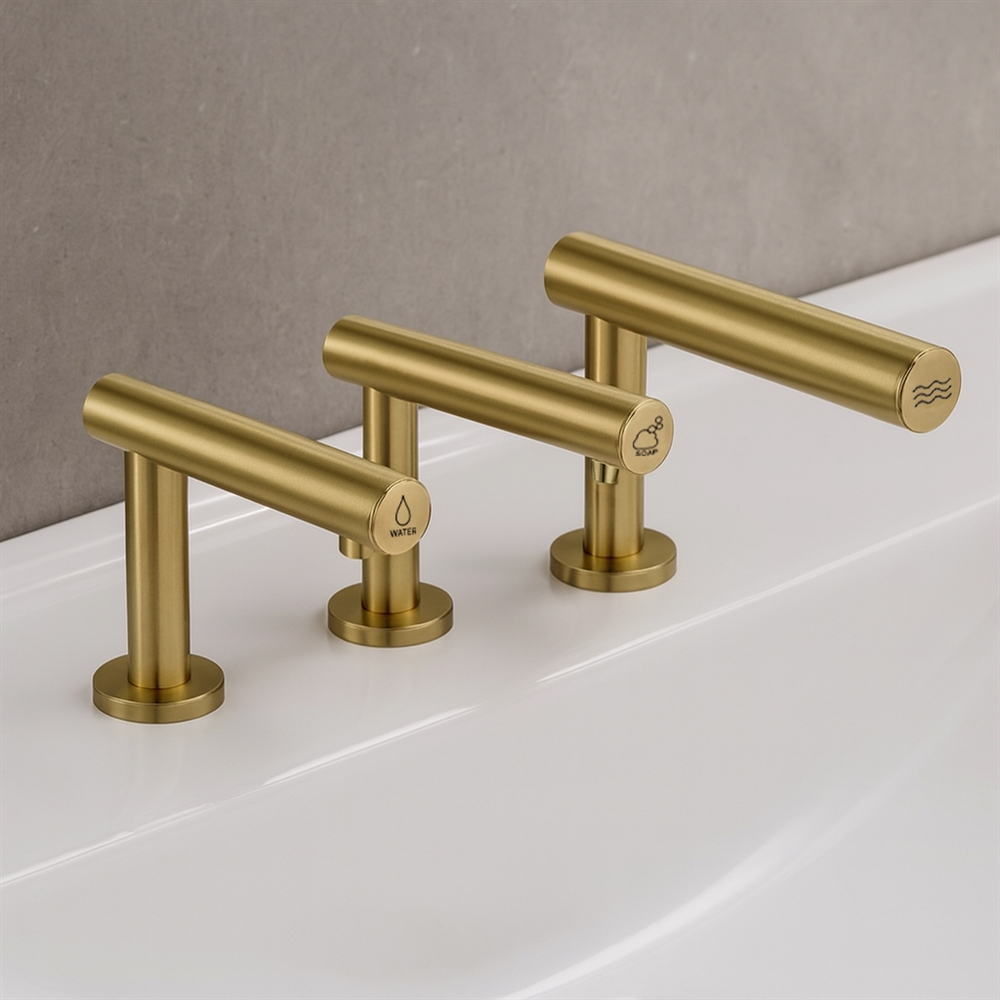

FontanaCryvora Champagne Bronze 3-in-1 Touchless Faucet, Dispenser & Dryer
The FontanaCryvora™ Champagne Bronze Edition adds exquisite elegance to the solution that joins faucet, soap dispenser, and dryer in a single harmonious centerpiece. Warmth, sophistication, and durability make this champagne bronze finish ideal for contemporary restroom settings. Being made of solid brass, the undercounter dock-mounted arrangement promises the utmost strength and timeless elegance.
Precision motion sensors provide instant contactless activation to deliver water, cleansing solution, and airflow promptly, yet uphold excellent hygiene. With an unheard-of rotational velocity of 38,000, the brushless motor would have ensured near-perfect operational reliability. Operating at 220–240 voltage, 50Hz frequency, and maximum power rating of 1300 watts, the system performance is optimized alongside a standby power rating being merely 1 watt. With an air speed of 90 m/s, this ensures that the hands will be dry within 10-15 seconds at a temperature of 30-40°C. Finally, HEPA filtration purifies all the air emitted, IP24 waterproofing secures protection, while noise output levels are kept at 75 dB. Innovation, aesthetics, and practicality for elite, cold applications.
FontanaCryvora™ Champagne Bronze 3-in-1 Touchless Faucet, Soap Dispenser & Hand Dryer FAQ
38,000 RPM Brushless Drying, HEPA Filtration;
Champagne Bronze Surface Protection
The FontanaCryvora™ Champagne Bronze 3-in-1 system combines a touchless
water faucet, automatic soap dispenser, and high-speed hand dryer in a
coordinated undercounter deck-mounted configuration. It features solid-brass
construction, precision motion sensing, a 38,000 RPM brushless motor,
90 m/s airflow, HEPA filtration, IP24 protection, and approximately
10–15 second drying performance.
How should the faucet, soap, and dryer sensor zones be commissioned?
Complete commissioning after the basin, countertop, mirror, lighting,
and surrounding accessories are installed. Test each touchless function
independently and verify that hand placement beneath the water outlet,
soap dispenser, and dryer activates only the intended component without
cross-triggering adjacent sensors.
What should be checked if drying takes longer than 10–15 seconds?
Inspect the HEPA filter, air intake, outlet passages, undercounter motor
enclosure, and air connections for restriction. A loaded filter, blocked
intake, loose duct connection, or insufficient cabinet ventilation can
reduce the specified 90 m/s airflow even while the 38,000 RPM motor continues operating.
How should the undercounter components be arranged for service access?
Maintain accessible clearance around the motor housing, soap reservoir,
control electronics, sensor wiring, and plumbing connections. Route hoses
and cables without sharp bends or tension, maintain ventilation around the
1300W dryer assembly, and keep electrical components protected from possible
plumbing or soap leakage.
How should the Champagne Bronze finish be cleaned?
Remove fingerprints, soap residue, and water deposits using a soft damp
microfiber cloth and dry the exposed brass surfaces immediately. Use diluted
pH-neutral soap only and avoid abrasive pads, acidic cleaners, bleach,
ammonia, steel wool, aggressive metal polish, and concentrated disinfectants
that may alter the warm Champagne Bronze appearance.
Read More
- Brand Name: FontanaShowers®
- Model Number: FS10510CB
- Type: Touchless Faucet, Dispenser & Dryer
- Main Material: Brass
- Finish: Champagne Bronze
- Mount Type: Undercounter
- Installatron Type: Deck Mounted
- Motor: Brushless
- Voltage: 220-240 V
- Frequency: 50Hz
- Total Power: 1300W
- Standby Power: 1W
- RPM: 38000
- Hand Dryer Air Speed: 90m/s
- Temperature: 30-40degrees
- Noise Level: 75dB
- Waterproof: IP24
- Filter: HEPA
- Hand Dryer Dry Time: 310-15s
- Tap Height: Dispenser: 140.5mm, Water Tap: 140.5mm, Hand Dryer: 170mm
- Tap Width: Dispenser: 32mm, Water Tap: 42mm, Hand Dryer: 40mm
- Tap Depth: Dispenser: 191.5mm, Water Tap: 191.5mm, Hand Dryer: 223mm
- Motor Case Height: 290mm
- Moto Case Width: 210mm
- Motor Case Depth: 190mm
