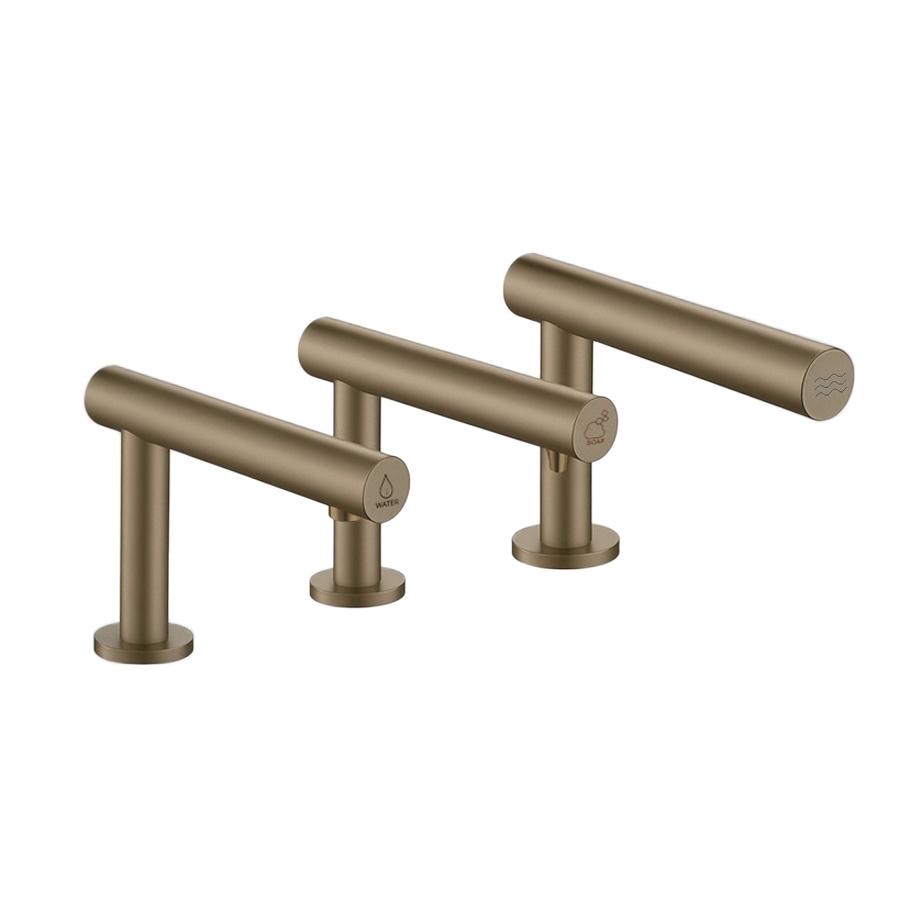

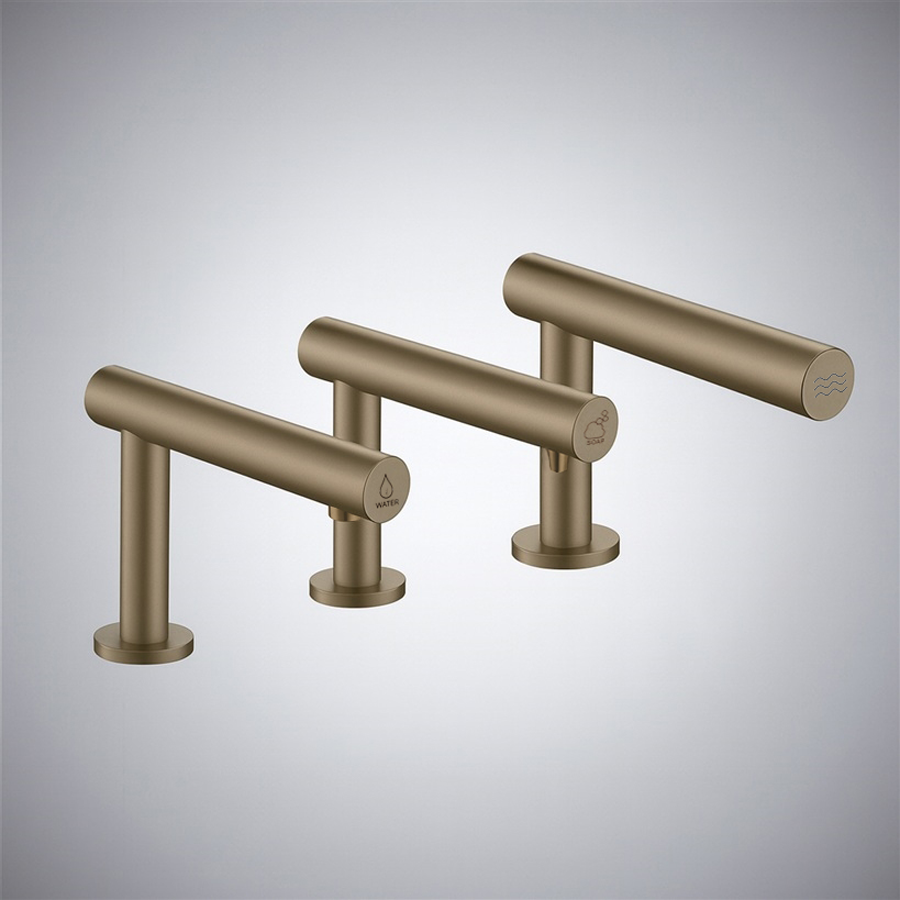

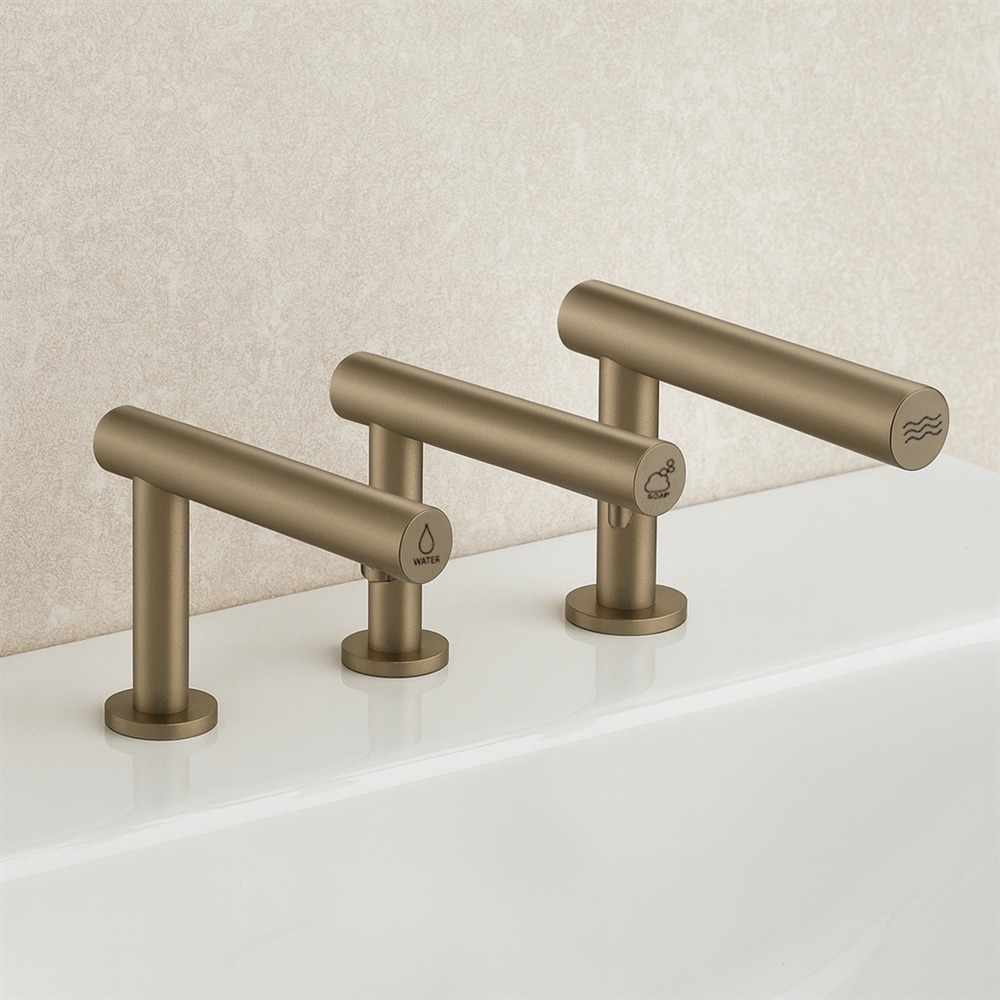

FontanaXynora Brushed Matte Bronze 3-in-1 Sensor Faucet, Soap Dispenser & Hand Dryer
The FontanaXynora™ Brushed Bronze Edition is the epitome of grandeur and sophistication, transforming the integration of faucet, dispenser, and dryer into the finest apt form. The warmer school of matte bronze infuses a higher style into out-and-out establishments meant for everlasting beauty. Made from good-grade brass, the multifunctional set ensures longer life while offering shockingly modern convenience of contactless operation via sensors.
With its stance set for under-counter deck installation, it runs through a high-speed brushless motor spinning at 38,000 revolutions per minute. Power consumption during standby mode is 1 watt, making it incredibly efficient, 220–240 volts at 50Hz being supplied, respectively. The velocity of air is 90 m/s, drying the hands in a span of only 10 to 15 seconds at a temperature considered pleasant by most people, about 30 to 40 °C. For further safety, HEPA filtration purifies the air. Waterproof with IP24 protection and the noise almost unheard of at 75 dB, the system guarantees reliability and quiet operation. Weighing 1300 watts, the entire setup is an amalgamation of sustainability, elegance, and ingenuity that is nothing short of the ultimate solution required by modern commercial toilets vying for function and luxury.
FontanaXynora™ Brushed Matte Bronze 3-in-1 Touchless Faucet, Soap Dispenser & Hand Dryer FAQ
38,000 RPM Brushless Drying, HEPA Filtration;
Brushed Matte Bronze Surface Protection
The FontanaXynora™ Brushed Matte Bronze 3-in-1 system combines a touchless
water faucet, automatic soap dispenser, and high-speed hand dryer in a
coordinated undercounter deck-mounted configuration. It features brass
construction, contactless sensor operation, a 38,000 RPM brushless motor,
90 m/s airflow, HEPA filtration, IP24 protection, 1300W total power,
1W standby consumption, and approximately 10–15 second drying performance.
How should the faucet, soap dispenser, and dryer sensor zones be commissioned?
Complete commissioning only after the basin, countertop, mirror, lighting,
partitions, and surrounding restroom accessories are fully installed.
Test the water faucet, soap dispenser, and hand dryer independently from
normal user hand positions and verify that each sensor activates only its
intended function. Confirm prompt water shutoff, controlled soap delivery,
and reliable dryer activation without cross-triggering between adjacent
sensing zones or interference from reflective basin and countertop surfaces.
What should be checked if drying exceeds the specified 10–15 second range?
Inspect the HEPA filter, air intake, dryer outlet passages, motor enclosure,
and connecting air path for accumulated dust or restriction. The dryer uses
a 38,000 RPM brushless motor producing approximately 90 m/s airflow and
30–40 °C drying air. A loaded filter, obstructed intake, restricted outlet,
loose air connection, or insufficient ventilation around the motor enclosure
can increase drying time even while the motor continues operating.
How should the undercounter motor and service components be arranged?
Maintain accessible clearance around the motor enclosure, soap reservoir,
control electronics, sensor wiring, plumbing connections, and air-routing
components. The motor case measures approximately 290 mm high, 210 mm wide,
and 190 mm deep. Route hoses and cables without sharp bends, crushing, or
excessive tension, maintain ventilation around the 1300W dryer assembly,
and protect electrical components from possible plumbing or soap leakage.
How should the Brushed Matte Bronze finish and exposed sensor surfaces be maintained?
Remove fingerprints, soap film, water deposits, and surface residue using
a soft damp microfiber cloth and dry the exposed Brushed Matte Bronze
surfaces after cleaning. Keep sensor windows, soap outlets, water outlets,
dryer air openings, and intake areas free from buildup. Use diluted
pH-neutral soap when required and avoid abrasive pads, steel wool, acidic
descalers, bleach, ammonia, aggressive metal polish, and concentrated
chemical cleaners that may burnish, scratch, or alter the matte bronze finish.
Read More
- Brand Name: FontanaShowers®
- Model Number: FS10510BMB
- Type: Touchless Faucet, Dispenser & Dryer
- Main Material: Brass
- Finish: Brushed Matte Bronze
- Mount Type: Undercounter
- Installatron Type: Deck Mounted
- Motor: Brushless
- Voltage: 220-240 V
- Frequency: 50Hz
- Total Power: 1300W
- Standby Power: 1W
- RPM: 38000
- Hand Dryer Air Speed: 90m/s
- Temperature: 30-40degrees
- Noise Level: 75dB
- Waterproof: IP24
- Filter: HEPA
- Hand Dryer Dry Time: 310-15s
- Tap Height: Dispenser: 140.5mm, Water Tap: 140.5mm, Hand Dryer: 170mm
- Tap Width: Dispenser: 32mm, Water Tap: 42mm, Hand Dryer: 40mm
- Tap Depth: Dispenser: 191.5mm, Water Tap: 191.5mm, Hand Dryer: 223mm
- Motor Case Height: 290mm
- Moto Case Width: 210mm
- Motor Case Depth: 190mm
