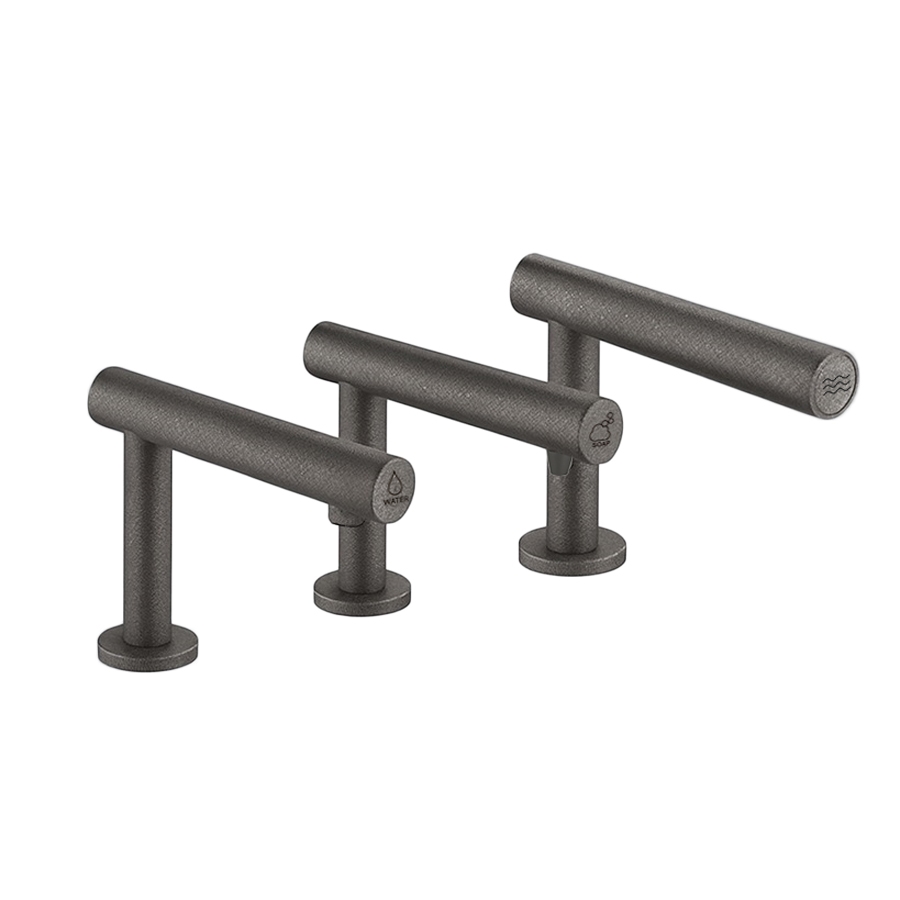

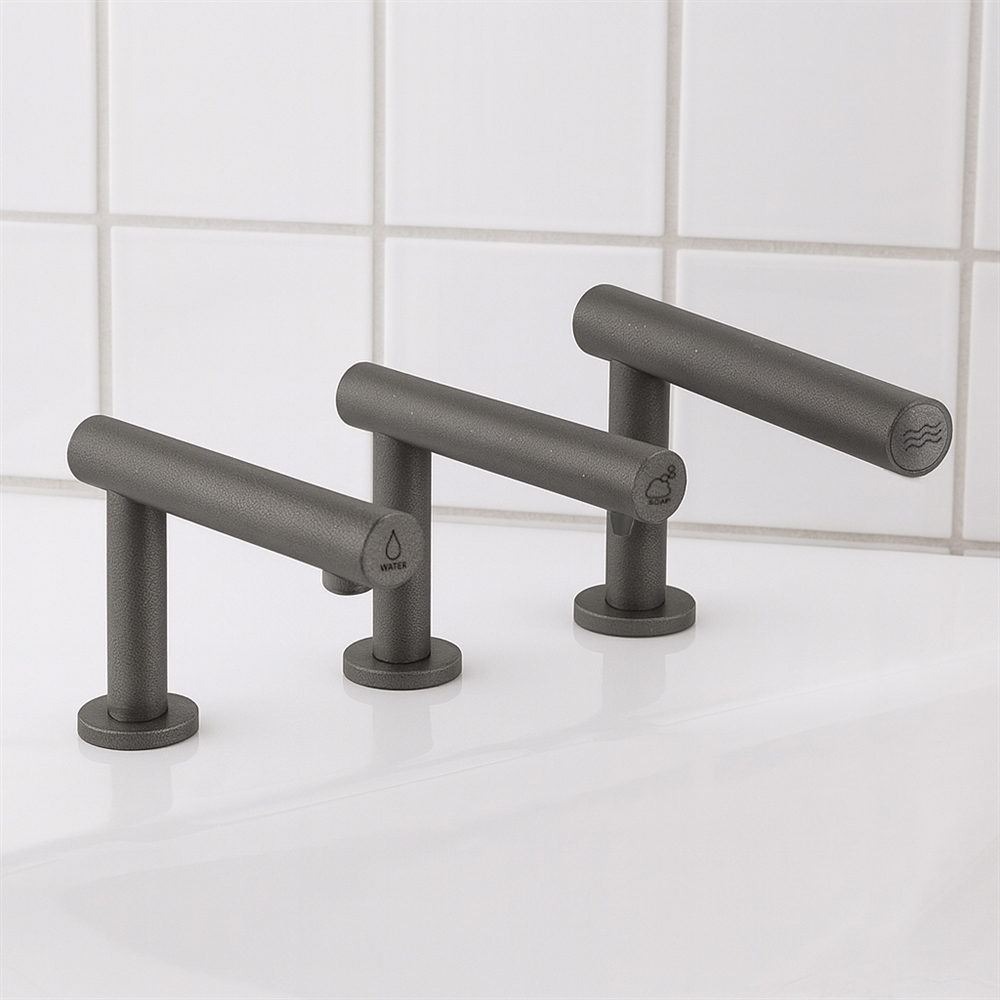

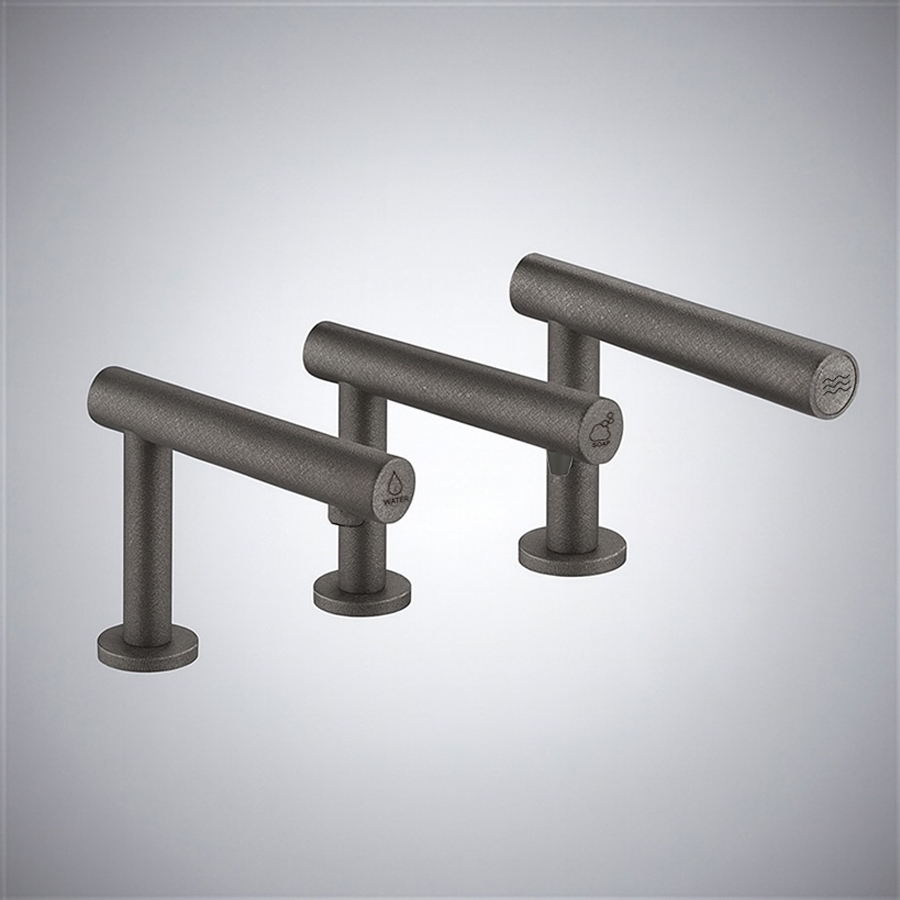

FontanaOrythia Warm Charcoal Auto Sensor Faucet, Soap Dispenser & Hand Dryer 3-in-1
The FontanaOrythia™ Warm Charcoal Edition is described as a brilliant display of stylistic contemporariness meshed with avant-garde technology. Confusingly, this name makes one think of something futuristic and robotic as it combines a faucet, soap dispenser, and dryer in one artificial system for the gifting of grace and convenience in mainstream restrooms. The finish in deep charcoal stands out boldly in the eye and makes a statement while resisting wear over time.
Made of superb brass with the setup of under-counter, deck-mounted, and all that will keep it sturdy and long-lasting. Smart sensors instantly turn on touchless water, cleansing solution, and airflow, ensuring better hygiene since it requires no physical contact. The system is driven with unbelievable reliability by a brushless motor spinning at 38,000 revolutions a minute. The system is designed to consume 1300 watts in total, while 1 watt is consumed when in standby mode; it runs on 220-240 volts, 50Hz. Air velocity being 90 m/s dries hands within 10-15 seconds at a comfortable temperature of 30-40 degrees Celsius. Noise remains controlled, only standing at 75 decibels, along with IP24 waterproofing and HEPA filtration, running checks on safety, cleanliness, and life.
FontanaOrythia Warm Charcoal 3-in-1 Touchless System FAQ
Sensor-Zone Separation, HEPA Airflow Performance; Warm Charcoal Surface Care
The FontanaOrythia Warm Charcoal 3-in-1 system integrates a touchless water faucet, automatic soap dispenser, and high-speed hand dryer with brass deck-mounted fixtures, a 38,000 RPM brushless motor, 90 m/s airflow, HEPA filtration, and IP24-rated electrical protection.
How should the three sensor zones be positioned to prevent unintended activation?
Install the water, soap, and dryer outlets with sufficient spacing so a user approaching one function does not enter another sensor field. Complete final calibration after the basin, backsplash, mirror, and countertop accessories are installed, then test each outlet independently from normal hand-entry angles.
What electrical provisions are required for the 1300W dryer assembly?
Provide a dedicated 220–240V, 50Hz supply sized for the system’s 1300W operating load and installed according to applicable electrical codes. The undercounter motor enclosure should remain accessible for servicing while being protected from direct water exposure and obstructed ventilation.
How should the 90 m/s airflow and 10–15 second drying time be checked?
Verify that the dryer outlet is unobstructed, the HEPA filter is correctly seated, and the motor intake has adequate clearance. Reduced airflow, extended drying time, or increased noise can indicate a loaded filter, restricted duct path, improper motor-housing ventilation, or supply-voltage instability.
How should the Warm Charcoal finish be cleaned without altering its textured appearance?
Wipe each exposed fixture with a soft damp microfiber cloth and dry the surface after cleaning. Use diluted pH-neutral soap only and avoid abrasive pads, polishing compounds, acidic descalers, bleach, ammonia, metal brushes, and concentrated disinfectants that may create uneven or polished areas.
Read More
- Brand Name: FontanaShowers®
- Model Number: FS10510WC
- Type: Touchless Faucet, Dispenser & Dryer
- Main Material: Brass
- Finish: Warm Charcoal
- Mount Type: Undercounter
- Installatron Type: Deck Mounted
- Motor: Brushless
- Voltage: 220-240 V
- Frequency: 50Hz
- Total Power: 1300W
- Standby Power: 1W
- RPM: 38000
- Hand Dryer Air Speed: 90m/s
- Temperature: 30-40degrees
- Noise Level: 75dB
- Waterproof: IP24
- Filter: HEPA
- Hand Dryer Dry Time: 310-15s
- Tap Height: Dispenser: 140.5mm, Water Tap: 140.5mm, Hand Dryer: 170mm
- Tap Width: Dispenser: 32mm, Water Tap: 42mm, Hand Dryer: 40mm
- Tap Depth: Dispenser: 191.5mm, Water Tap: 191.5mm, Hand Dryer: 223mm
- Motor Case Height: 290mm
- Moto Case Width: 210mm
- Motor Case Depth: 190mm
