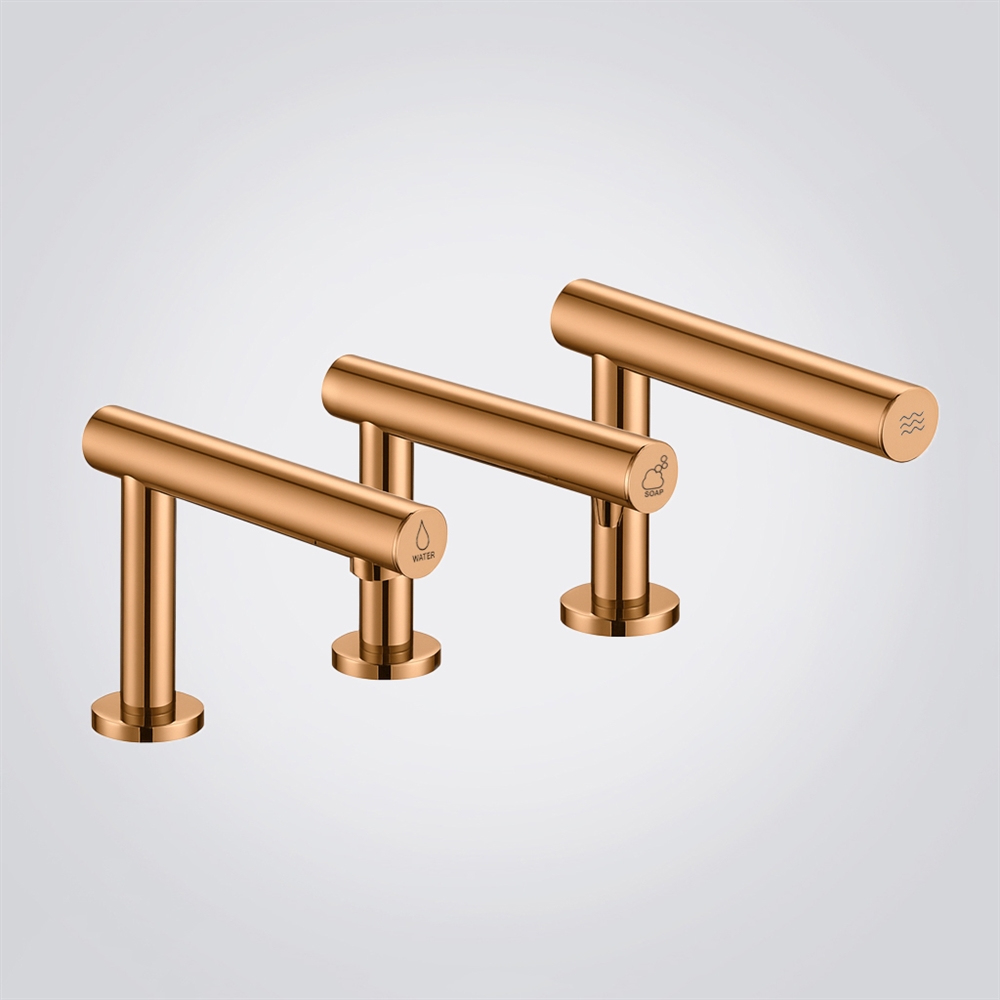

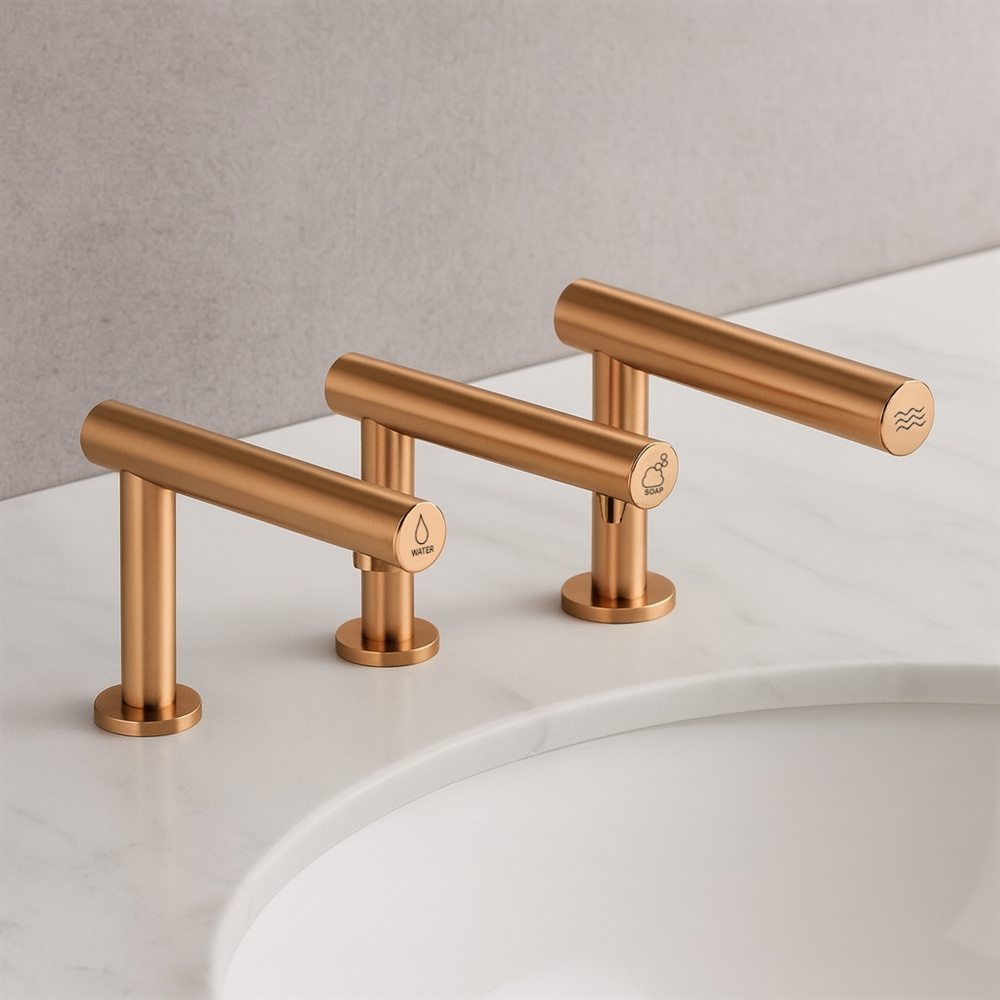

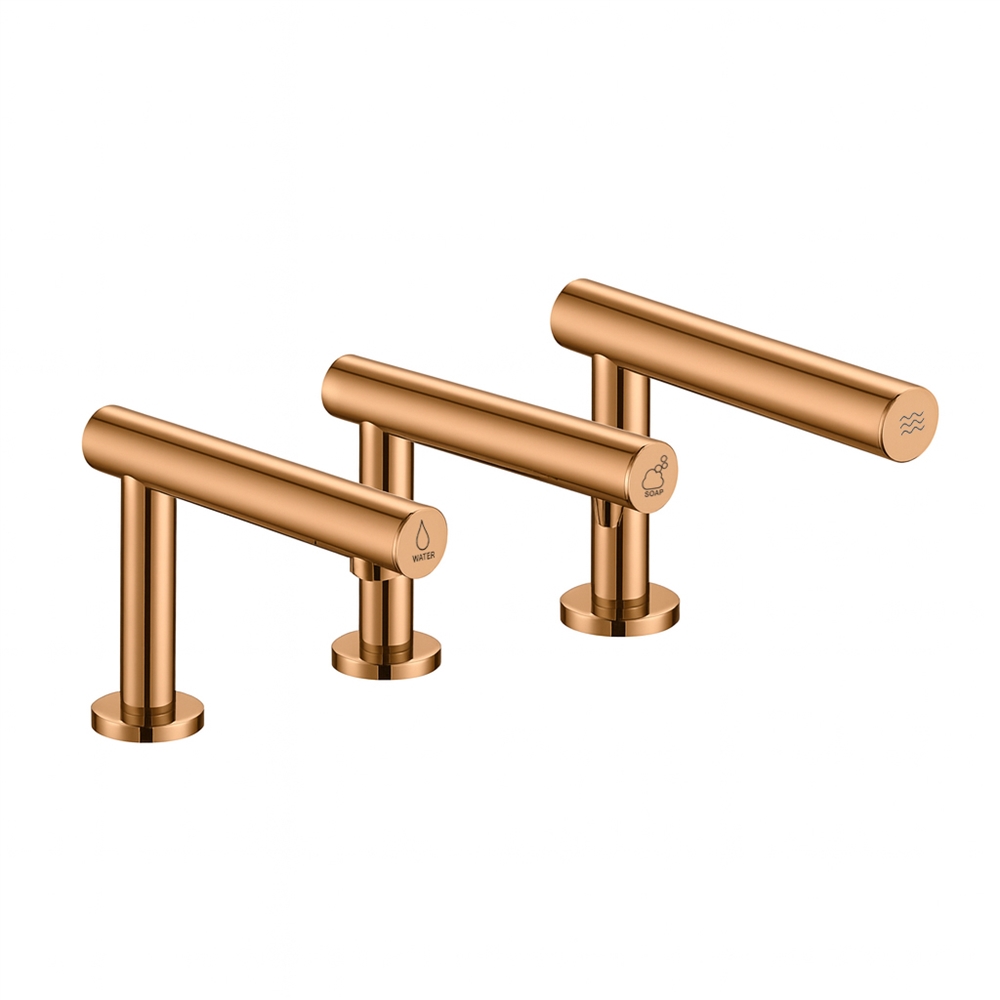

FontanaTrioBreeze Champagne 3-in-1 Touchless Faucet, Automatic Soap Dispenser & Hand Dryer
The FontanaTrioBreeze™ 3-in-1 system combines the spout, soap dispenser, and hand dryer into one beautiful, seamless fixture. Finished in champagne with polished detailing, this integrated solution saves valuable space in the modern restroom and is a paradox of cleanliness, relevance, and hygiene. This brass-made deck-mount unit with the undercounter elements retains a neat and clean look.
Touch-free operation is achieved by smart sensors, decreasing waste and ensuring higher sanitation. The high-tech brushless motor with a speed of 38,000 RPM creates an airflow of 90 m/s, allowing the Fast Dry to dry hands within 10 to 15 seconds. HEPA filtration ensures clean air, and the total power consumption of 1300W at 1W standby and operational temperature of 30-40°C ensures its energy efficiency. Its noise is kept at 75 max for a great balance between comfort and speed. Being rated IP24 waterproof ensures that it is going to last for many years, even in high-traffic areas. Fashionable commercial facilities will find this fixture combines style, FAD, and sustainability to create a real-life, alternate touchless experience.
Fontana TrioBreeze Station FAQs
Brushless Drying, HEPA Filtration & 3-in-1 Utility Control
Fontana TrioBreeze champagne 3-in-1 station integrates touchless water delivery, automatic soap dispensing, high-speed hand drying, HEPA filtration, and undercounter utility control for commercial restroom hygiene.
How are the faucet, dispenser, and dryer separated functionally?
Each fixture uses its own activation zone, allowing water, soap, and drying functions to operate independently without cross-triggering.
What drying specifications support fast commercial use?
The hand dryer uses a 38,000 RPM brushless motor, 90 m/s air speed, 30–40°C warm air, and 10–15 second drying time.
What electrical ratings should be planned before installation?
The system requires 220–240V, 50Hz power, 1300W total draw, 1W standby power, and IP24 water protection.
What undercounter clearances must installers verify?
Installers should confirm the 290mm motor case height, 210mm width, 190mm depth, and service access below the deck.
Read More
- Brand Name: FontanaShowers®
- Model Number: FS10510CP
- Type: Touchless Faucet, Dispenser & Dryer
- Main Material: Brass
- Finish: Champagne
- Mount Type: Undercounter
- Installatron Type: Deck Mounted
- Surface Treatment: Polished
- Motor: Brushless
- Voltage: 220-240 V
- Frequency: 50Hz
- Total Power: 1300W
- Standby Power: 1W
- RPM: 38000
- Hand Dryer Air Speed: 90m/s
- Temperature: 30-40degrees
- Noise Level: 75dB
- Waterproof: IP24
- Filter: HEPA
- Hand Dryer Dry Time: 310-15s
- Tap Height: Dispenser: 140.5mm, Water Tap: 140.5mm, Hand Dryer: 170mm
- Tap Width: Dispenser: 32mm, Water Tap: 42mm, Hand Dryer: 40mm
- Tap Depth: Dispenser: 191.5mm, Water Tap: 191.5mm, Hand Dryer: 223mm
- Motor Case Height: 290mm
- Moto Case Width: 210mm
- Motor Case Depth: 190mm
