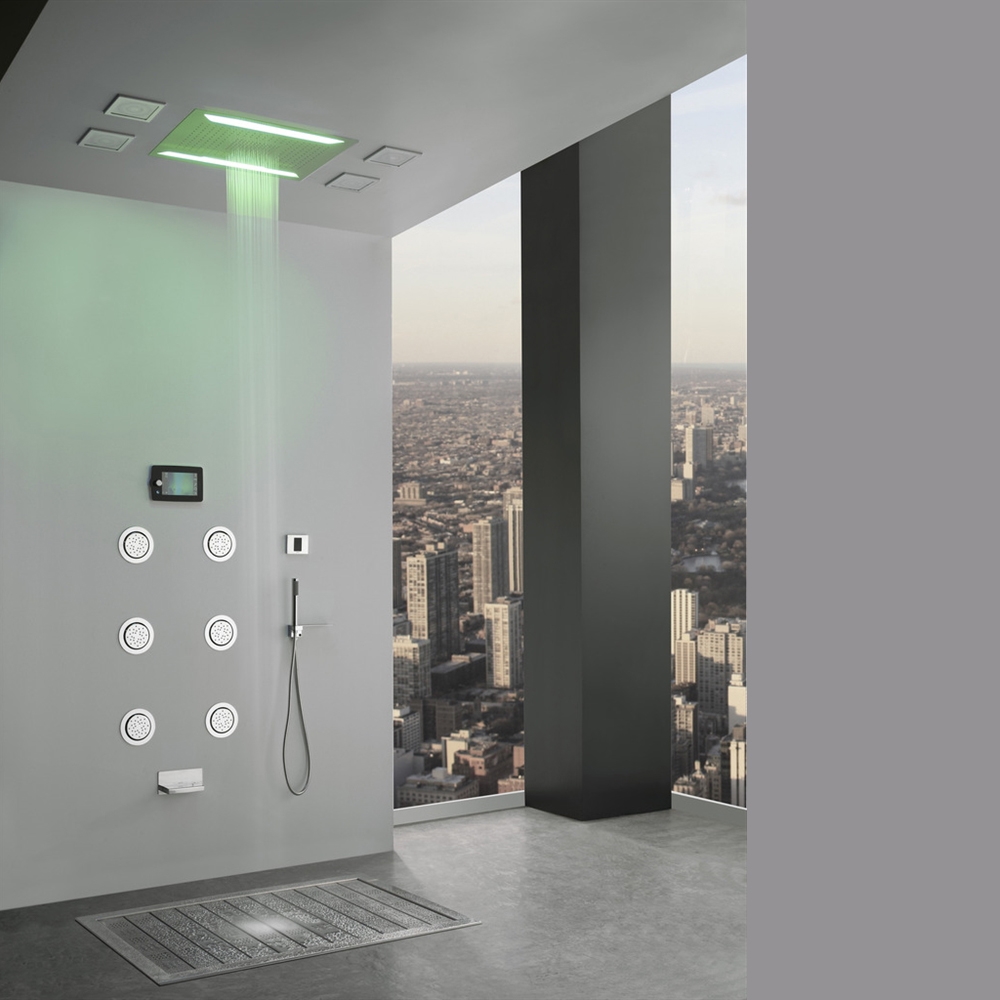

How to install Fontana Luxurious Recessed Large LED Waterfall Rainfall Shower System With 6 Body Jets Hand Shower | FS7394
Installation Instructions for Bathroom Shower Set Before you begin, please read the installation instructions below:
Visit Product Page
shower
Ensure compliance with local building codes and safety standards.
Unpack your products and inspect them for any shipping damage. If damage is detected, refrain from installation.
Remember, installation must be done by a certified plumber Failure to do so may void the warranty.
Shower Head Installation Instructions
Size:
Step 1:Cut out a hole in the suspended (false) ceiling, install the fixture, and mark the locations on the ceiling for the mounting plugs.
shower
Step 2: Next, create four Ø11 holes at the marked locations. Push the mounting plugs into each hole and firmly secure them in place using a hammer.
Step 3: Screw four bolts into the plugs and fasten them securely with nuts.
Step 4: If necessary, trim the bolts to the required size as indicated in the provided drawing.
Step 5:Carefully insert the fixture into the suspended ceiling hole, ensuring a snug fit.
Step 6:Adjust the installation height by rotating the nuts as needed.
Step 7:Lift the fastening cables into position.
Step 8:Connect the supply lines.
Step 9:Insert the rain shower assembly into the fixture.
Step 10:Tighten the 4 mounting bolts and insert the LED shrouds.
Shower System Installation Instructions
Assembly Diagram:
Wiring Connections:
Water Supply Connections:
Function Box Installation
shower
Cleaning the filters:
1. Close the hot and cold water supply to the function block.
2. Remove the nuts of the supply hoses.
3. Remove the filters.
4. Use a brush to remove all dirt and impurities.
5. Reassemble the filter, tighten the hose nuts and open the hot and cold water supply.
Control Touch Panel Installation
Size:
Step 1:
shower
Step 2:
Step 3:
USB Port Installation Instructions
Step 1:
shower
Step 2:
Step 3:
5. Install the outer housing.
Speakers Installation Instructions
Step 1:
shower
Step 2:
Step 3:
