ENGINEERED FOR COMMERCIAL APPLICATIONS
Commercial Touchless Faucet Systems
Complete engineering guide and resource hub for
commercial touchless faucet systems
designed for high-traffic facilities.
Reduce water consumption by up to 45%, improve hygiene in
commercial restroom environments,
and meet ADA compliance requirements for modern architectural projects.
Trusted by architects, engineers, and facility managers for airports, hospitals, hotels, and commercial buildings.
Wall Mount
Best for hospitals, clean rooms, high-traffic
Explore →
Deck Mount
Best for offices, corporate facilities
Explore →
Battery Powered
Best for retrofit, remote locations
Explore →
Hardwired AC
Best for new construction, high-traffic
Explore →
💡
Need help selecting the right system?
Our commercial specialists are ready to assist with product selection, specifications, and project quotes.
Speak with a commercial specialist →

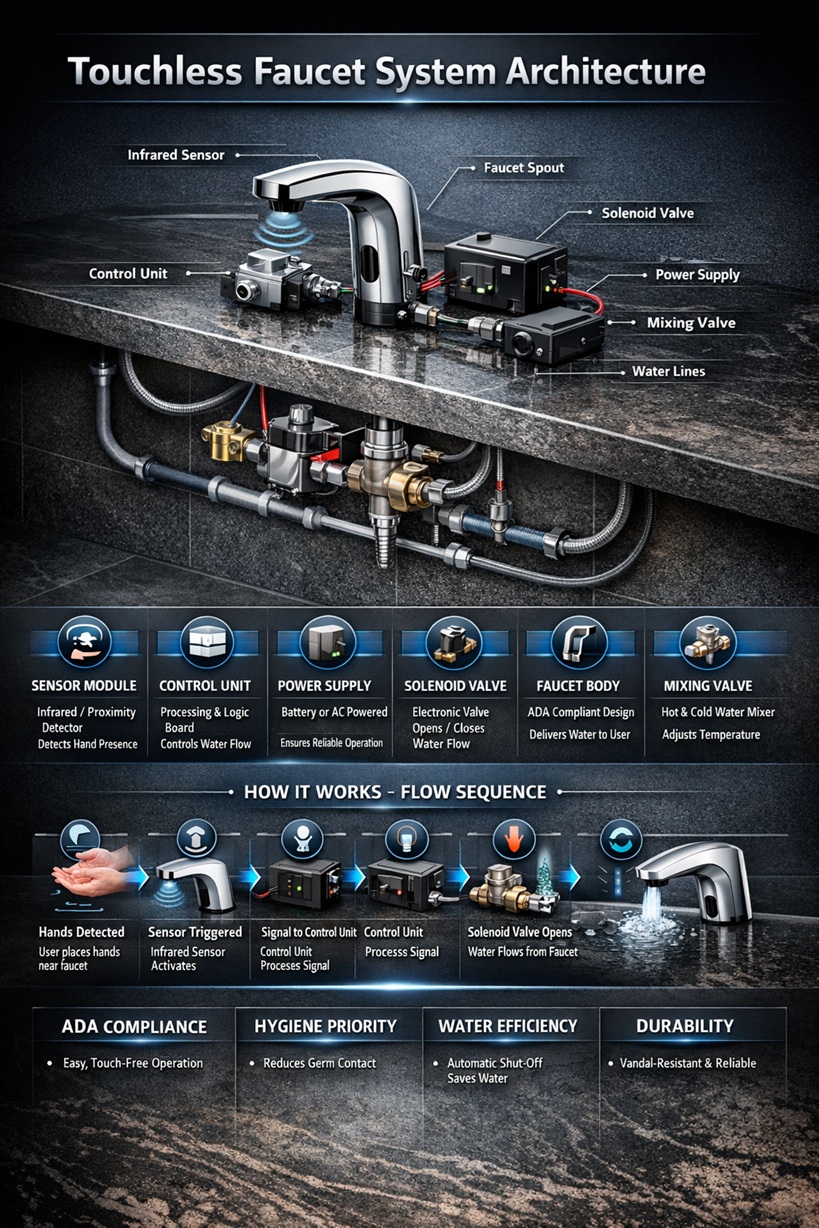

SYSTEM ARCHITECTURE
How a Commercial Touchless Faucet System Works
A complete touchless system consists of four integrated components working in sequence:
1
Infrared Sensor — Detects hand presence within range
2
Electronic Control Unit — Processes signal and activates valve
3
Solenoid Valve — Opens to release water flow
4
Flow Regulator — Maintains consistent water pressure
View Technical Documentation →
💡
Need help selecting the right system?
Our commercial specialists are ready to assist with product selection, specifications, and project quotes.
Speak with a commercial specialist →
High Traffic Environments
Choose hardwired AC systems with 500k+ cycle valves and vandal-resistant bodies.
💡
Need help selecting the right system?
Our commercial specialists are ready to assist with product selection, specifications, and project quotes.
Speak with a commercial specialist →
💡
Need help selecting the right system?
Our commercial specialists are ready to assist with product selection, specifications, and project quotes.
Speak with a commercial specialist →
🧱
Wall Mount Faucets
Ideal for healthcare and modern commercial designs. Easier cleaning, reduced countertop clutter, and superior infection control.
- ✓ Space-saving design
- ✓ Easier surface cleaning
- ✓ Reduced countertop clutter
Explore Wall Mount →
💼
Deck Mount Faucets
Best for offices and retrofit installations. Compatible with standard sink configurations and easier installation process.
- ✓ Standard installation
- ✓ Retrofit friendly
- ✓ Wide compatibility
Explore Deck Mount →
💡
Need help selecting the right system?
Our commercial specialists are ready to assist with product selection, specifications, and project quotes.
Speak with a commercial specialist →
Chrome
Standard commercial finish with mirror-like shine
View Chrome →

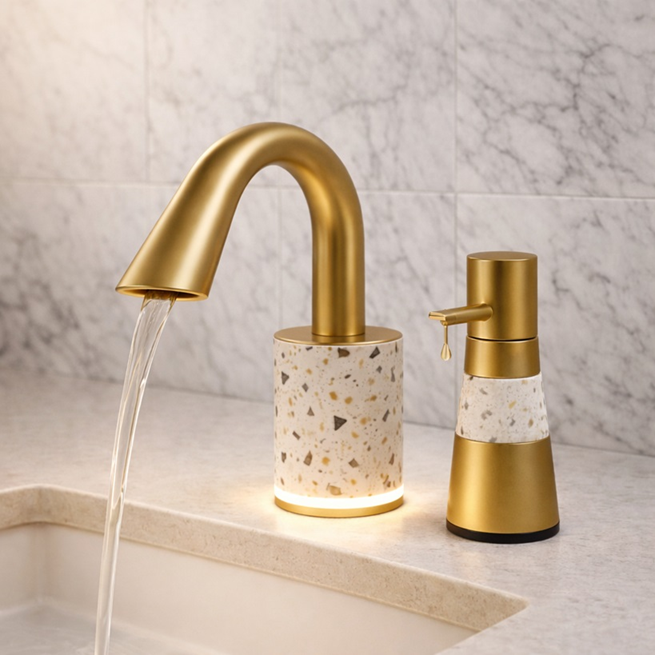

Gold / Brass
Luxury hospitality environments, premium aesthetic
View Gold →
Need help selecting the right system?
Our commercial specialists are ready to assist with product selection, specifications, and project quotes.
Speak with a commercial specialist →
✈️
Airport Restrooms
Handles 1000+ users daily with minimal maintenance downtime and vandal-resistant construction.
🚀 500+ cycles/day | 🛡️ Vandal-resistant
View Airport Solutions →
🏥
Hospital Facilities
Reduces contamination risk and supports infection control protocols with hands-free operation.
🧼 Infection control | 🧫 Antimicrobial finishes
View Healthcare Solutions →
🏢
Office Buildings
Improves water efficiency while maintaining user comfort and professional aesthetics.
💧 45% water savings | 🔇 Quiet operation
View Office Solutions →
💡
Need help selecting the right system?
Our commercial specialists are ready to assist with product selection, specifications, and project quotes.
Speak with a commercial specialist →
| Feature |
Wall Mount |
Deck Mount |
Integrated (Faucet + Soap) |
| Best For | Hospitals, Airports, High-Traffic | Offices, Corporate, Retail | Healthcare, Food Service, Complete Hygiene |
| Installation Complexity | Medium - Wall rough-in required | Low - Standard countertop | Medium - Integrated rough-in |
| Aesthetics | Clean, minimalist | Traditional, visible | Seamless, professional |
| Maintenance Access | Easy - Accessible from wall | Easy - Accessible from above | Easy - Centralized access |
| Typical Cost Range | $400 - $800 | $300 - $600 | $600 - $1,200 |
Need help selecting the right system?
Our commercial specialists are ready to assist with product selection, specifications, and project quotes.
Speak with a commercial specialist →

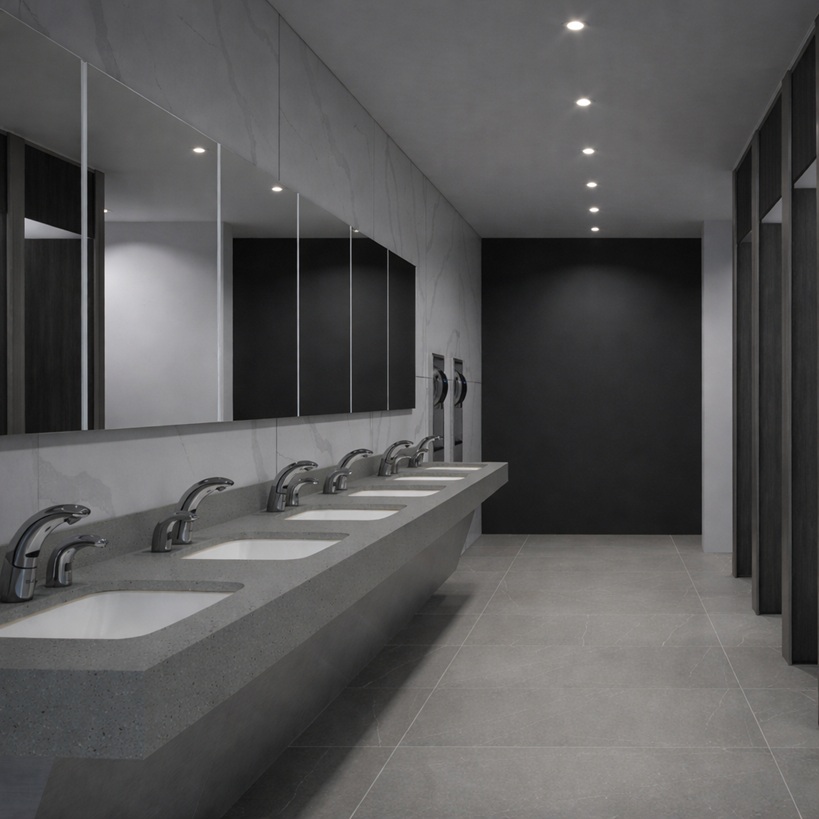

AIRPORTS & TRANSIT
High-Traffic Durability
Systems rated for continuous public use with vandal-resistant construction, anti-clog sensors, and remote monitoring capabilities.
- 500+ cycles per day capacity
- Vandal-resistant design
- Easy maintenance access
View Airport Solutions →
HEALTHCARE
Infection Control Systems
Critical care environments require maximum hygiene with antimicrobial finishes and extended flow cycles.
- Antimicrobial surface finishes
- Hands-free operation
- Easy-clean designs
View Healthcare Solutions →

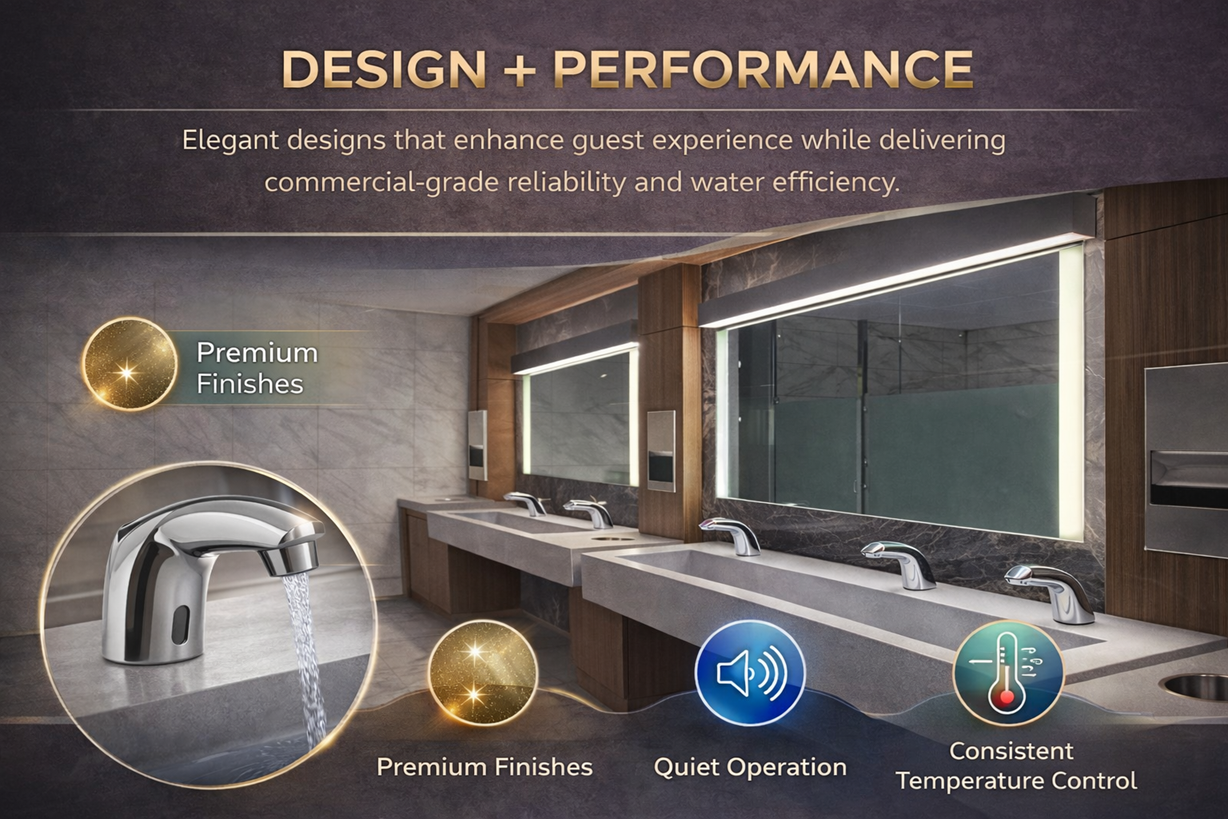

HOSPITALITY
Design + Performance
Elegant designs that enhance guest experience while delivering commercial-grade reliability and water efficiency.
- Premium finishes
- Quiet operation
- Consistent temperature control
View Hospitality Solutions →
Need help selecting the right system?
Our commercial specialists are ready to assist with product selection, specifications, and project quotes.
Speak with a commercial specialist →
❌
Cross-Contamination
Public restrooms are primary vectors for bacteria transmission through touchpoints.
✅ Solution: Touchless systems eliminate all contact points, reducing infection risk by up to 99%.
💧
Water Waste
Manual faucets often run unnecessarily, wasting thousands of gallons annually.
✅ Solution: Automatic shutoff and flow regulation reduce consumption by 45% compared to manual fixtures.
🔧
High Maintenance Costs
Manual faucet handles wear out quickly in high-traffic environments.
✅ Solution: Solenoid valves rated for 500k+ cycles with minimal mechanical wear.
🏢
ADA Non-Compliance
Manual faucets often require grip strength and fine motor control.
✅ Solution: Touchless systems meet ADA requirements without handles or levers.
💡
Need help selecting the right system?
Our commercial specialists are ready to assist with product selection, specifications, and project quotes.
Speak with a commercial specialist →
Sensor TypeInfrared, passive detection
Detection Range4-12 inches adjustable
Response Time0.2-0.3 seconds
Auto Shutoff30-120 seconds adjustable
Flow Rate0.35, 0.5, 1.0, 1.5 GPM options
Pressure Range20-125 PSI
WaterSense CertifiedYes
LEED PointsUp to 4 points
Power OptionsAC, DC battery, hybrid
Battery Life5+ years / 350k cycles
Valve Life500,000+ cycles
Material GradeSolid brass, 304 stainless
ADA ComplianceYes - no handles required
ASME A112.18.1Certified
NSF/ANSI 61Drinking water safe
CalGreenCompliant
Need help selecting the right system?
Our commercial specialists are ready to assist with product selection, specifications, and project quotes.
Speak with a commercial specialist →
LIFECYCLE MANAGEMENT
Maintenance & Troubleshooting
Keep your touchless systems operating at peak performance with proper maintenance protocols.
- ✓ Sensor Cleaning: Wipe sensor window monthly with soft cloth
- ✓ Battery Replacement: Replace every 5 years or when indicator flashes
- ✓ Valve Inspection: Check solenoid valve every 2 years for debris
- ✓ Aerator Cleaning: Remove and clean mineral deposits annually
Download Maintenance Guide →
Common Issues & Solutions
No water flowCheck power source, replace batteries
Continuous flowClean sensor, check for obstructions
Intermittent activationAdjust sensor sensitivity, clean lens
Low flow rateClean aerator, check supply valves
Need help selecting the right system?
Our commercial specialists are ready to assist with product selection, specifications, and project quotes.
Speak with a commercial specialist →
BMS READY
Integrated Restroom Systems
Complete hygiene workflow combining touchless faucets, soap dispensers, and hand dryers.
- BACnet and Modbus integration
- Real-time usage monitoring
- Predictive maintenance alerts
- Leak detection and auto shutoff
Complete Restroom Resources
Need help selecting the right system?
Our commercial specialists are ready to assist with product selection, specifications, and project quotes.
Speak with a commercial specialist →
What is the lifespan of commercial touchless faucet systems?
Commercial touchless faucet systems are engineered for 500,000+ cycles, which typically translates to 10-15 years of service life in standard commercial applications. Solenoid valves and electronic components are designed for replacement, extending overall system longevity.
Are touchless faucets ADA compliant?
Yes, touchless faucets fully meet ADA accessibility requirements. They require no gripping, pinching, or twisting of handles, making them ideal for accessible restrooms. All our touchless systems comply with ADA Standards for Accessible Design.
Do touchless faucets require electricity?
Touchless faucets can operate on battery power (4-6 AA batteries with 5+ year life), hardwired AC power, or hybrid configurations. Battery-powered models are ideal for retrofit projects where electrical access is limited.
How much water do touchless faucets save?
Touchless faucets typically reduce water consumption by 30-45% compared to manual faucets through automatic shutoff and integrated flow regulators. WaterSense certified models save an additional 20% over standard fixtures.
Can touchless faucets integrate with building management systems?
Yes, our central control systems integrate with BACnet and Modbus protocols, enabling real-time monitoring, usage analytics, leak detection, and predictive maintenance scheduling across your entire facility.
What maintenance do touchless faucets require?
Regular maintenance includes monthly sensor window cleaning, annual aerator cleaning, battery replacement every 5 years (for battery models), and periodic valve inspection. No routine mechanical maintenance is required.
Need help selecting the right system?
Our commercial specialists are ready to assist with product selection, specifications, and project quotes.
Speak with a commercial specialist →

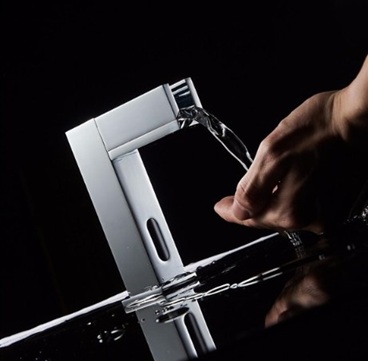

Sensor Calibration & Accuracy
Adjustable infrared sensors ensure accurate detection without false activation, even in reflective or high-light environments. Calibration settings allow optimization for distance, sensitivity, and response time.
Learn about sensor technology →
💧
Flow Control Engineering
Laminar flow regulators reduce splashing and maintain consistent output regardless of pressure fluctuations. Designed for 0.35–1.5 GPM efficiency standards.
View flow specifications →
⚡
Power System Optimization
Battery and AC systems are engineered for redundancy and long lifecycle performance. Hybrid systems ensure continuous operation even during power interruptions.
Compare power options →
Need help selecting the right system?
Our commercial specialists are ready to assist with product selection, specifications, and project quotes.
Speak with a commercial specialist →
💧
Water Savings
up to 45%
Reduce water usage through automatic shutoff and controlled flow rates. Save thousands of gallons annually per fixture.
Calculate your savings →
🔧
Maintenance Reduction
60% less
Fewer moving parts mean lower wear and reduced repair frequency compared to manual faucets. Lower labor costs over time.
View maintenance study →
📊
Lifecycle Cost Efficiency
ROI in 2-3 years
Lower operational costs over time due to durability and reduced water consumption. Long-term savings exceed initial investment.
Request ROI analysis →
Need help selecting the right system?
Our commercial specialists are ready to assist with product selection, specifications, and project quotes.
Speak with a commercial specialist →
45%
Water Savings
Automatic shutoff technology
500k+
Cycles
Commercial durability rating
ADA
Compliant
Accessible design standards
60%
Less Maintenance
Reduced operational cost
BEST FOR RETROFIT

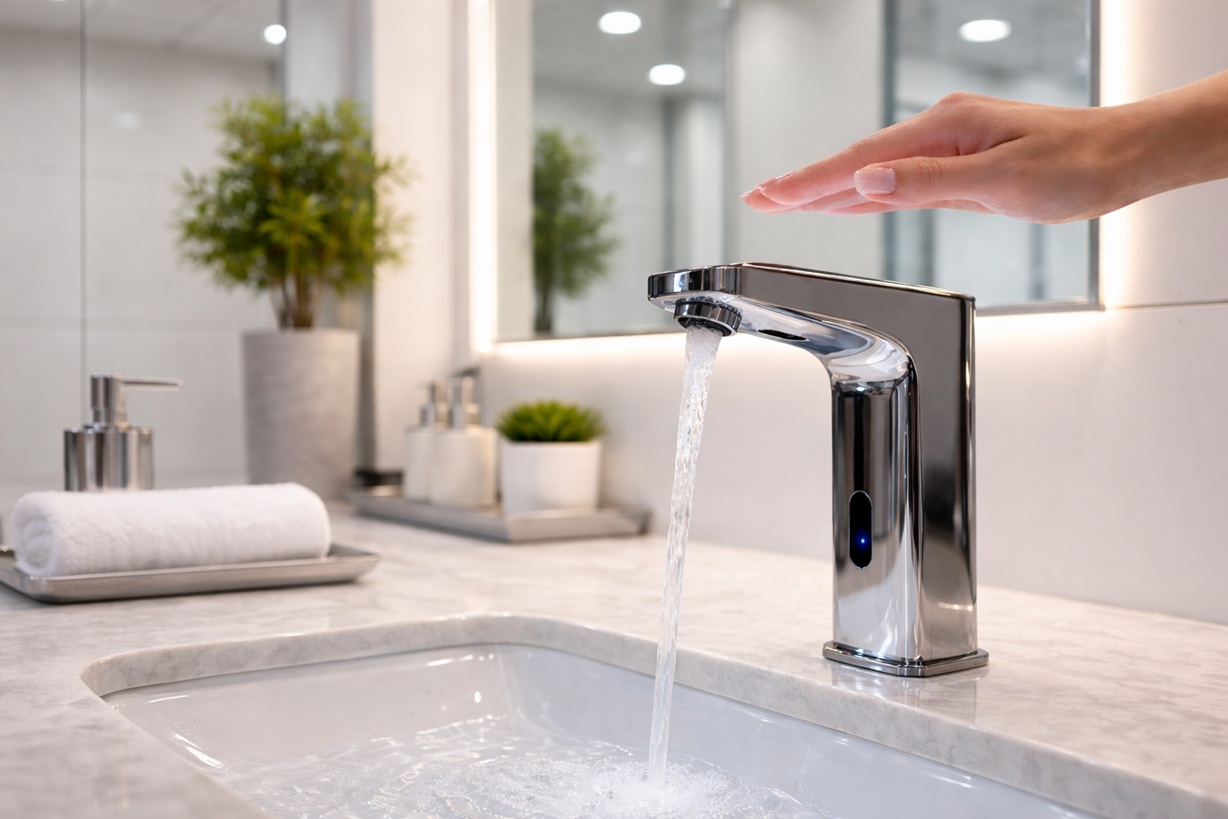

Battery-Powered Touchless System
High-efficiency battery-powered sensor faucet designed for retrofit applications. This self-contained unit delivers over 5 years of battery life, eliminating the need for electrical wiring while ensuring reliable, touch-free operation in commercial restrooms.
SKU: FT-100-BT
From $299
BEST FOR HIGH-TRAFFIC

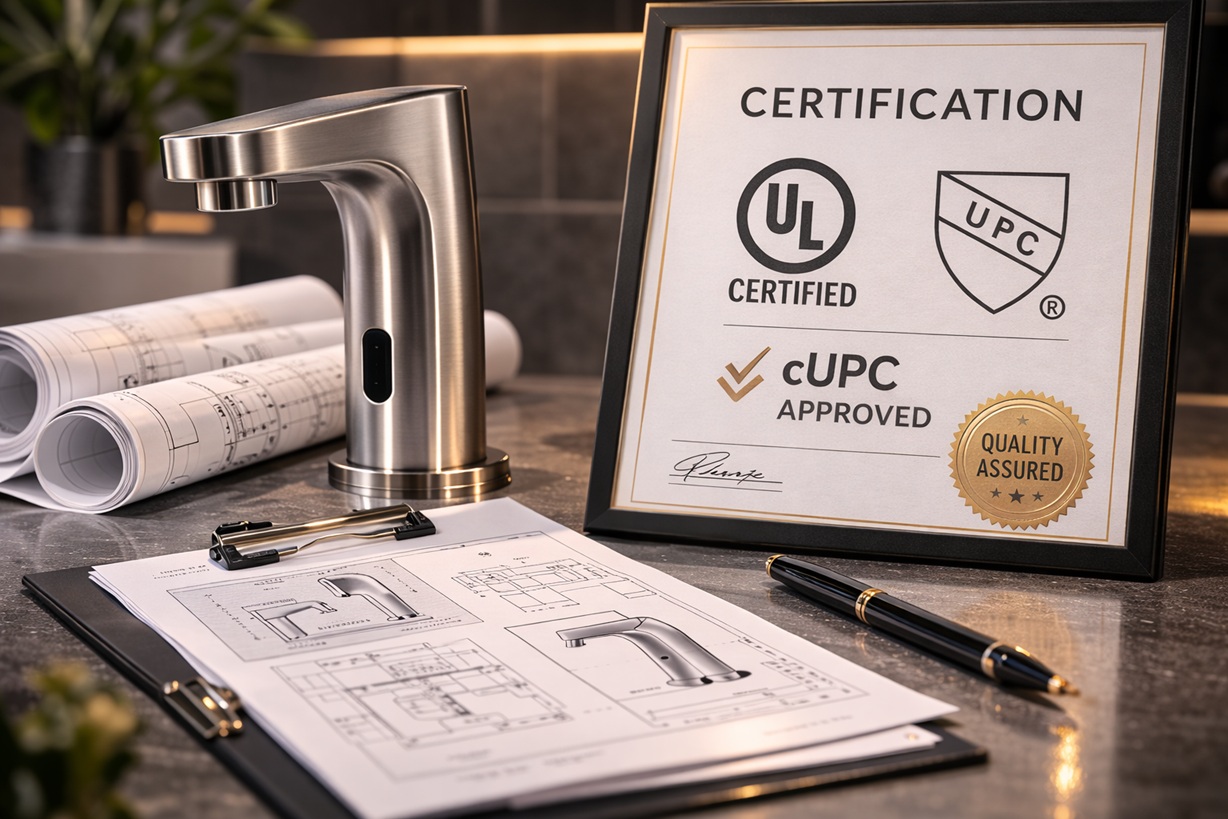

Hardwired Touchless System
Commercial-grade AC-powered touchless faucet with integrated battery backup for uninterrupted performance. Built for high-traffic environments such as airports, hospitals, and hotels, ensuring continuous operation, water efficiency, and long-term durability.
SKU: FT-200-AC
From $449
HEALTHCARE SERIES
Healthcare Touchless System
Advanced healthcare-grade touchless faucet featuring an antimicrobial finish and programmable extended flow cycles. Specifically engineered for hospitals, clinics, and surgical environments to support hygiene compliance, infection control, and hands-free operation.
SKU: FT-300-HC
From $599
Need help selecting the right system?
Our commercial specialists are ready to assist with product selection, specifications, and project quotes.
Speak with a commercial specialist →
📐
BIM & CAD Files
Download digital assets for seamless integration into project designs. Compatible with Revit, AutoCAD, and other major platforms.
Download BIM Library →
📄
Specification Sheets
Detailed technical documentation including flow rates, materials, compliance data, and installation requirements.
Download Specs →
🔧
Installation Coordination
Guidance for contractors on system integration, plumbing layout, power requirements, and best practices.
View Installation Guide →
Need help selecting the right system?
Our commercial specialists are ready to assist with product selection, specifications, and project quotes.
Speak with a commercial specialist →
Ready to Specify Touchless Faucet Systems?
Get expert guidance from our engineering team for your commercial project. We'll help you select the right system, provide specifications, and deliver competitive pricing.
Need help selecting the right system?
Our commercial specialists are ready to assist with product selection, specifications, and project quotes.
Speak with a commercial specialist →
