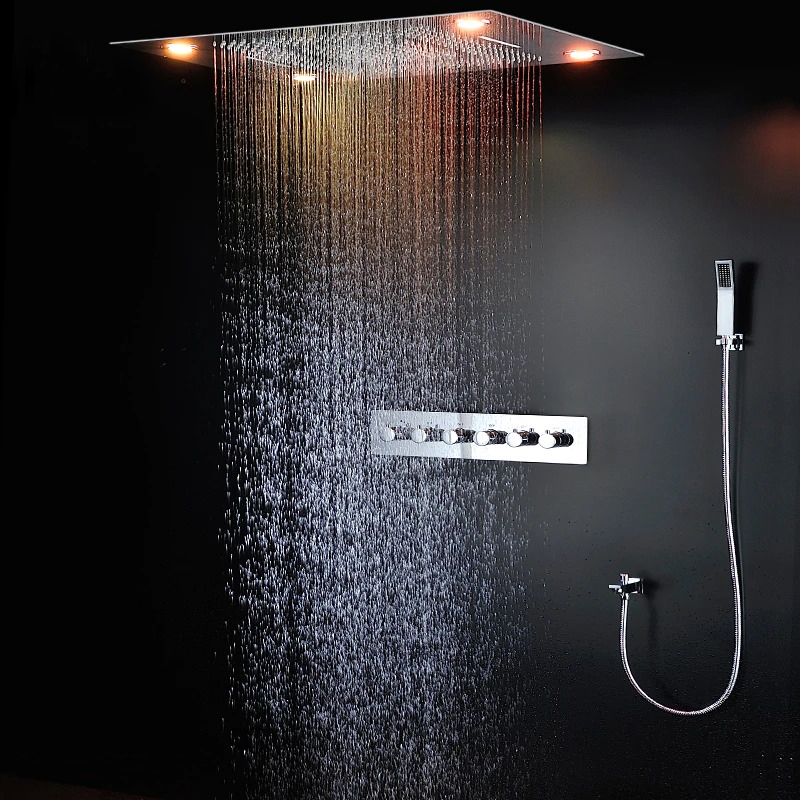

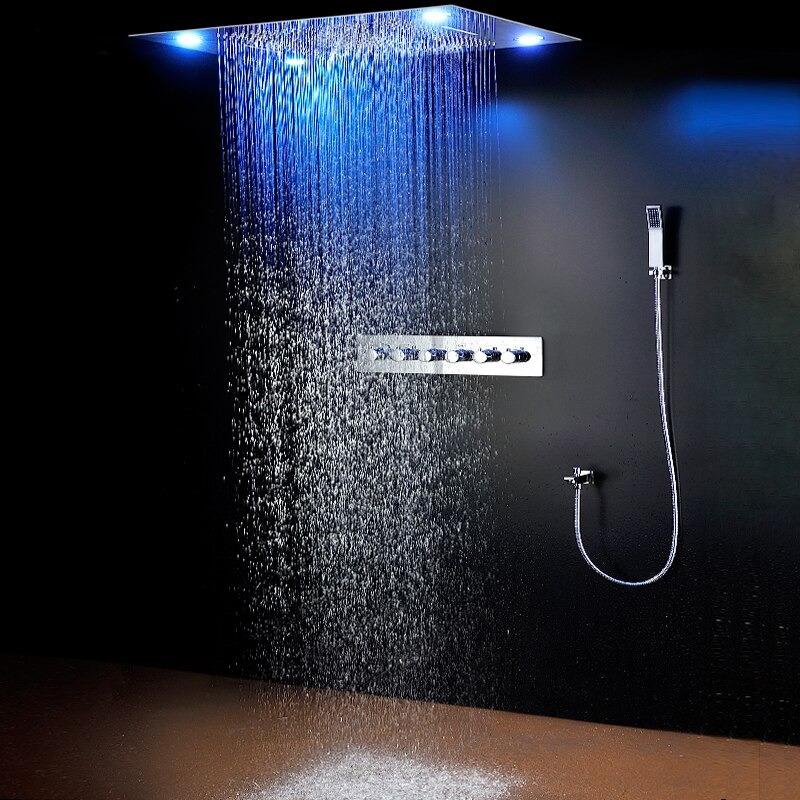

How to install Fontana Dijon Thermostatic Large Ceiling Mount LED Shower Set With Hand Held Shower And Spout | FS15026
Installation Instructions for Bathroom Shower Set
Visit Product Page
Before you begin, please read the installation instructions below. Observe all local building and safety codes.
Unpack and inspect the product for any shipping damages. If you find damages, do not install.
Please note all products must be installed by a professional and certified plumber otherwise warranty might be voided.
shower
Shower Head Installation Instructions
Step 1:
Step 2:
shower
LED Shower Head Installation Instructions
Step 3:
Step 4:
According to the dimensions and shape of the mounting bracket, determine the bracket location to be installed in the ceiling.
According to the 8 mounting holes on the mounting bracket, use an Electric drill to make the mounting holes.
Shower Head Installation Instructions
Step 5:
Step 6:
Using the two hexagonal nuts adjust the distance between the mounting bracket and the ceiling, and keep the mounting bracket on the level. Use an explosion screw to fix the mounting bracket on the ceiling, pay attention to the explosion screw, it can adjust the height and use level tool to adjust the mounting bracket to reach level.
Connecting Circuits
Shower Head Installation Instructions
Step 7:
Step 8:
According to the chart shows: Raise the showerhead, Aim at the hole of the bolt, plug the bolt.
Use a Phillips screwdriver screw out the upper cover 4 screws, open the plastic waterproof boxes. Note: The same color line docking, brown line for line, the blue line is zero line. Use a Phillips screwdriver screw out the screws in plastic waterproof box wiring position, then put the fork terminal line connected, then fix it with a Phillips screwdriver.
Shower Head Installation Instructions
Step 9:
Step 10:
According to the circuit diagram as shown in step 5, then connect plastic waterproof case, please note that the same color of the wire when connecting circuit to docking.
Connecting water hoses and Tee joints and then connect the water hoses to the water inlet pipe connector.
LED Shower Head Installation Instructions
Step 11:
Step 12:
Connecting 4 pcs water hose to 2 Tee joints and G1/2 joints in the middle and then put another side of the shower hoses through the showerhead side holes.
Installing the shower body by plugging the bolts. (As the above picture).
LED Shower Head Installation Instructions
Step 13:
Step 14:
Install the decorative panel and twist the corresponding 8 fixing screws with a SW4 hex wrench.
Install 4 LED lights and lamp cups clockwise.
LED Shower Head Installation Instructions
Step 15:
Step 16:
Note: 1. Before connecting water hoses and water pipes, cleaning the water pipes first. It will prevent impurities from clogging the showerhead. 2. When connecting water pipes and hoses, don't forget to put the G1/2 filter net in the water hoses, filtering impurities.
Connect 4 water inlet hoses to the wall-embedded water inlet pipes and then seal the wall.
LED Shower Head Installation Instructions
Step 17:
Step 18:
LED Shower Head Installation Instructions
Step 19:
Step 20:
LED Shower Head Installation Instructions
Step 21:
Step 22:
LED Shower Head Installation Instructions
Step 23:
Step 24:
LED Shower Head Installation Instructions
Spout & Hand Held Shower Installation Instructions
Step 1:
Step 2:
HandHeld Shower
Hand Held Shower
Handheld Shower
Step 3:
Step 4:
Tub & Hand Shower Outlet Installation
• Complete the outlet pipework ensuring it ends in an appropriate 15mm x 1/2" BSP female thread elbow. Note: This fitting is not supplied as variations in installations require the selection of a suitable solder or compression fitting.
• Install the 'Wall Outlet', thread long male 1/2" BSP into the appropriate female fitting using PTFE tape to give a watertight joint. Note: The thread can be cut to size if required. Make sure that all debris is removed from the connector and the section that has been cut is dressed correctly, before installation.
Shower Wall Holder Installation Decide the position for the shower head holder on the wall within the bath showering area and proceed as follows: • Hold the hand shower head holder fixing plate in a suitable position on the wall, mark out the position of the holder. Mark the two locating holes, these are 17mm center. • Drill and plug the wall. Use an appropriate masonary drill, but if the wall is plasterboard or a soft building block, use special wall plugs and an appropriate drill bit. • Slide the inserts onto the screws in the orientation. Secure the inserts by tightening the screws. • Slide the hand shower head holder body onto the inserts and secure by tightening the grub screw facing down.
- Release Six handwheel levers according to the above directions. - Take apart the embed valve, panel, and handwheel. - Dig the embed space for the pipe on the wall according to the specification of the valve. - Dig 4 holes according to the position of the screws. - Use a hammer to thwack the screws into 4 holes. - Fix the valve body with 4 screws. - Find out the expansion screw heads with washer and spring washer. Use copper sleeve wrench to lock the screw heads with the embed valve body. - After connecting all the pipes and before sealing the wall with concrete, confirm no leaking problem occur when you turn on the water. - Fix the decorative panel on the embedded valve body. - Screw the handwheel arms with the handwheels.
