How to install Fontana Verona Temperature Controlled LED Shower System | FS971JSA

Installation Instructions for Temperature Controlled LED Shower Set Before you begin, please read the installation instructions below. Observe all local building and safety codes. Unpack and inspect the product for any shipping damages. If you find damages, do not install. Please note all showers must be installed by a professional and certified plumber otherwise warranty might be voided.

shower

Shower Head Installation Instructions

		shower
	Step 1:		Step 2:
	According to the template (B) mark the location of the mounting holes (1). Use a drill with a 6mm bit to drill mounting holes into studs or blocking.		Install the mounting brackets (C) with the tapping screws (D1). Thread the shower bars (E) onto the mounting brackets, and the inlet hose (F) onto the water inlet.
	Step 3:		Step 4:
	Attach the shower head (A) to the shower bars (E). Connect the inlet hose (F) to the showerhead.
	Step 5:		Size:

Hand Held Shower Installation Instructions

Step 1:		Step 2:
	Hand Held Shower		Hand Held Shower
Handheld Shower
Step 3:
				.

Shower Thermostatic Mixer Installation Instructions

Step 1:			Step 2:
	Mixer	Valve
			Release 4 handwheel levers according to the above directions. Take apart the embed valve, panel, and handwheel.
Mixer Control Valve Installation Instructions
Step 3:			Step 4:
Dig the embed space for the pipe on the wall according to the specification of the valve. Dig 4 holes according to the position of the screws.			Use a hammer to thwack the screws into 4 holes. Fix the valve body with 4 screws.
Mixer Control Valve Installation Instruction
Step 5:			Step 6:
Find out the expansion screw heads with washer and spring washer. Use copper sleeve wrench to lock the screw heads with the embed valve body.			After connecting all the pipes and before sealing the wall with concrete, confirm no leaking problem occurs when you turn on the water.
Mixer Control Valve Installation Instruction
Step 7:			Step 8:
Fix the decorative panel on the embed valve body.			Screw the handwheel arms with the handwheels.
Mixer Control Valve Installation Instruction
Step 9:			Step 10:
Mixer Control Valve Installation Instruction

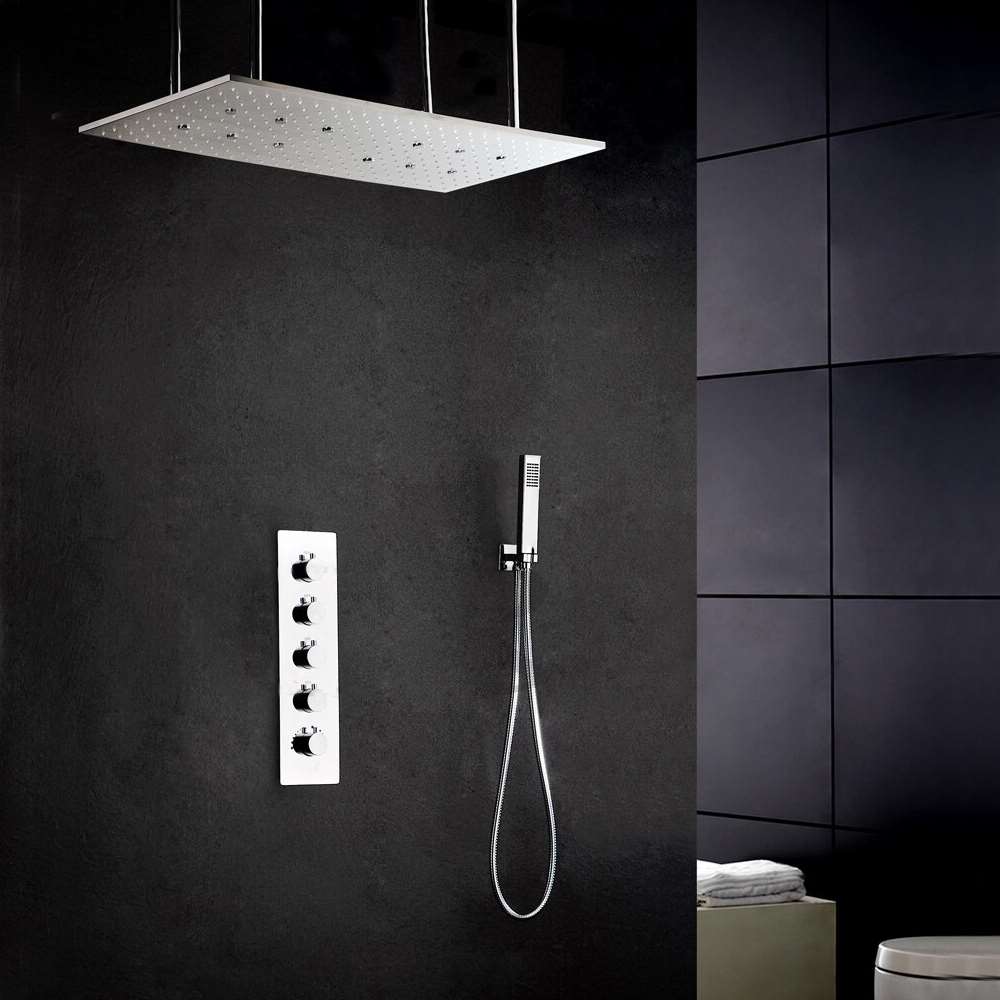

Fontana Verona Temperature Controlled LED Shower System

The Verona Shower Head System comes with an Overhead Shower & a Hand Held Shower Set which comes with Temperature controls. It is our goal to provide customer not only excellent products but also leading lifestyle. This has an elegant design and elevates the appeal of your decor made from the highest quality and for great tastes. It comes super seal technology inside, capable of delivering superior performance with a solid construction for long durability that will upgrade your bathroom with a modern and cool look for a long period of time. Give your bathroom an elegant glance with these bathroom fixtures. This is one of the most trendiest finishes across decor styles in the bathroom. When it comes to new bathroom upgrades, FontanaShowers is offering shape, finishes and styles that you've looking for.

Features:

Brand Name: FontanaShowers Model Number: FS971JSA Type: Head Shower & Shower Faucets Style: Contemporary Size: 32" By 16" Surface Treatment: Polished Type: Fixed Support Type Valve Core Material: Ceramic Shower Faucet: Shower Sets Flow Rate: 6.6 GPM Number of Handles: Five Working Pressure: 0.3-1.2Mpa Water Function: Atomizing, Swash And Rainfall Finish: Chrome Power: Hydro Power, No Battery Needed LED Colors: Blue, Green, Red Installation Type: Ceiling Mount Material: Brass And Stainless Steel 304
