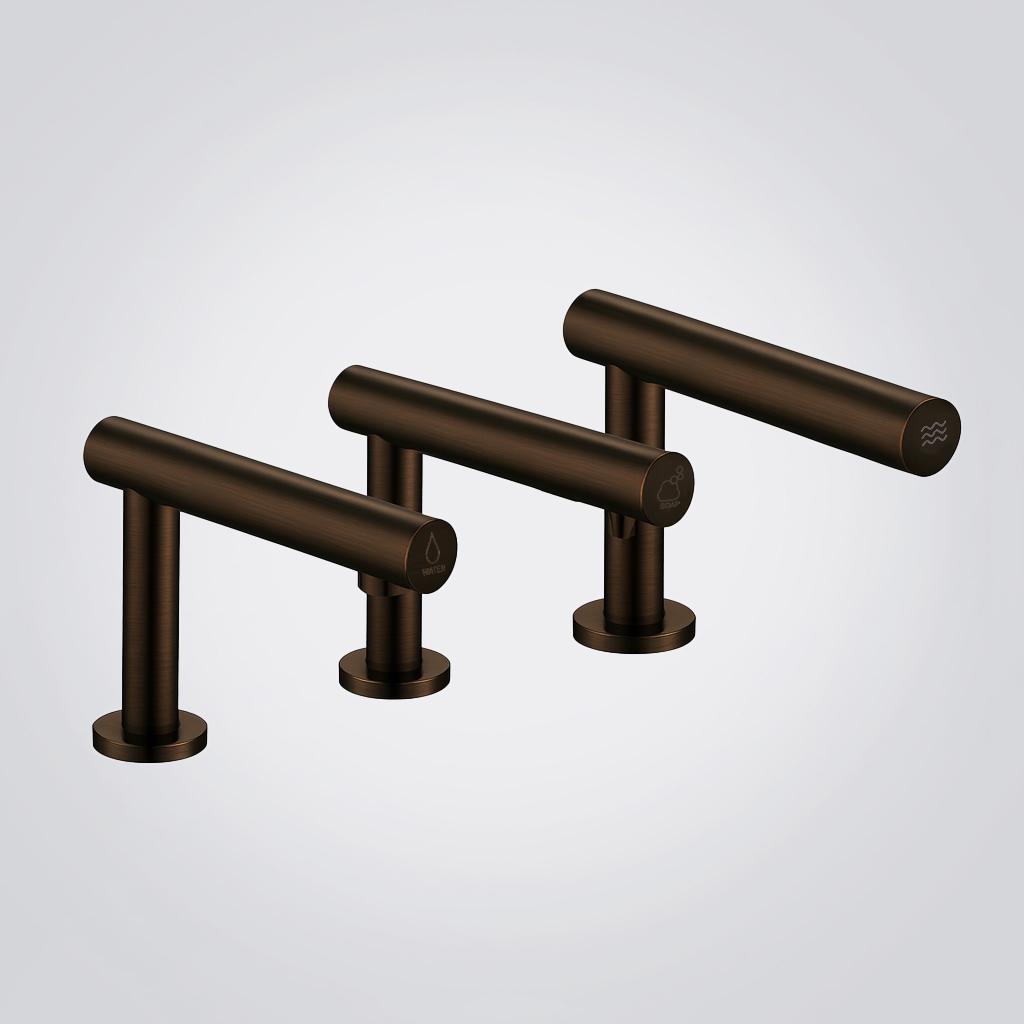

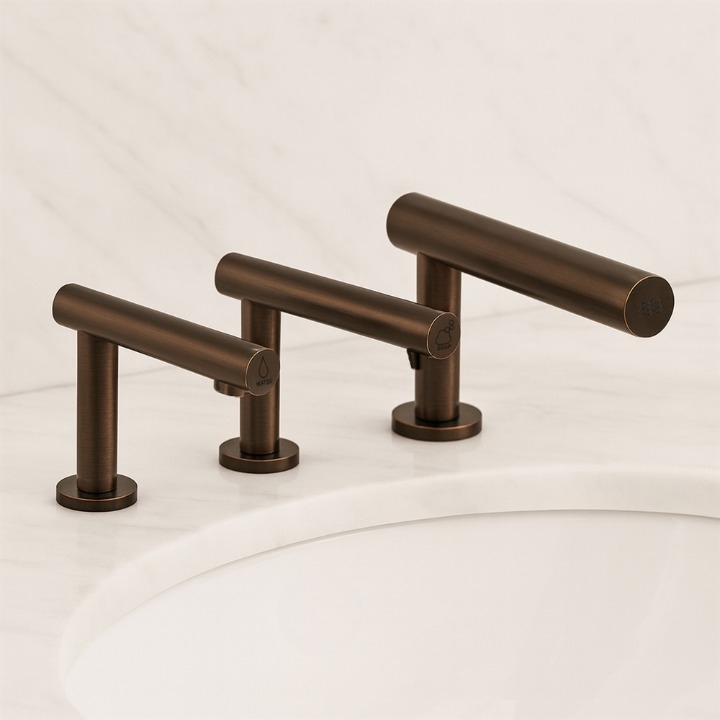

FontanaPrismPure Oil Rubbed Bronze 3-in-1 Smart Touchless Faucet, Soap Dispenser & Hand Dryer
Grab an eyeful of FontanaPrismPure™ Oil Rubbed Bronze 3-in-1 set detonates anything associated with traditional restrooms by way of integrating a faucet, an auto-soap dispenser, and a high-speed hand dryer into an intelligent single unit. The daring oil-rubbed bronze finish offers a distinctive look, while the polished detailing adds layers of perception and refinement. Constructed of high-grade brass for its robust qualities and longevity, this fixture exudes elegance in any set-it-wherever ambiance.
This hand-dryer consists of state-of-the-art smart sensors granting touchless usage to reduce waste and maximize hygiene, with a brushless motor that produces high-speed airflow at 38,000 RPM and 90 m/s, blowing dry wet hands in roughly 10-15 seconds, with a low-standby consumption of 1W. HEPA filtration helps keep the air purified in hygienic processes for heavy traffic. Operating at 30-40°C and conveying power up to a total of 1300 W, it is just right from the comfort point, performance, and energy consumption. In addition, IP24 waterproof protection offers the reliability needed by this beauty that becomes a perfect solution for those upscale commercial establishments that want function, style, and an innovative platform all with one fixture.
FontanaPrismPure™ Oil Rubbed Bronze 3-in-1 Touchless System FAQ
Sensor Sequencing, Undercounter Ventilation; Oil Rubbed Bronze Finish Care
The FontanaPrismPure™ Oil Rubbed Bronze system integrates a touchless water faucet, automatic soap dispenser, and high-speed hand dryer with brass deck-mounted fixtures, a 38,000 RPM brushless motor, 90 m/s airflow, HEPA filtration, and IP24-rated protection.
How should the three sensor functions be commissioned to prevent overlapping activation?
Test the soap, water, and dryer sensors independently after the basin, mirror, backsplash, and countertop accessories are installed. Normal hand movement beneath one outlet should not activate either adjacent function, and reflective surfaces should remain outside all three calibrated detection zones.
What undercounter conditions support reliable 38,000 RPM motor operation?
Maintain clear ventilation around the motor enclosure and keep its intake, HEPA filter compartment, wiring, and service panels unobstructed. Restricted airflow or excessive enclosure temperature can reduce the specified 90 m/s discharge, increase drying time, and place unnecessary thermal load on the brushless motor.
How should reduced drying performance be diagnosed before replacing the motor?
Inspect the HEPA filter for loading, confirm that the outlet and internal air path are clear, and verify a stable 220–240V electrical supply. Also check for loose connections or blocked enclosure ventilation before attributing longer than normal 10–15 second drying times to motor failure.

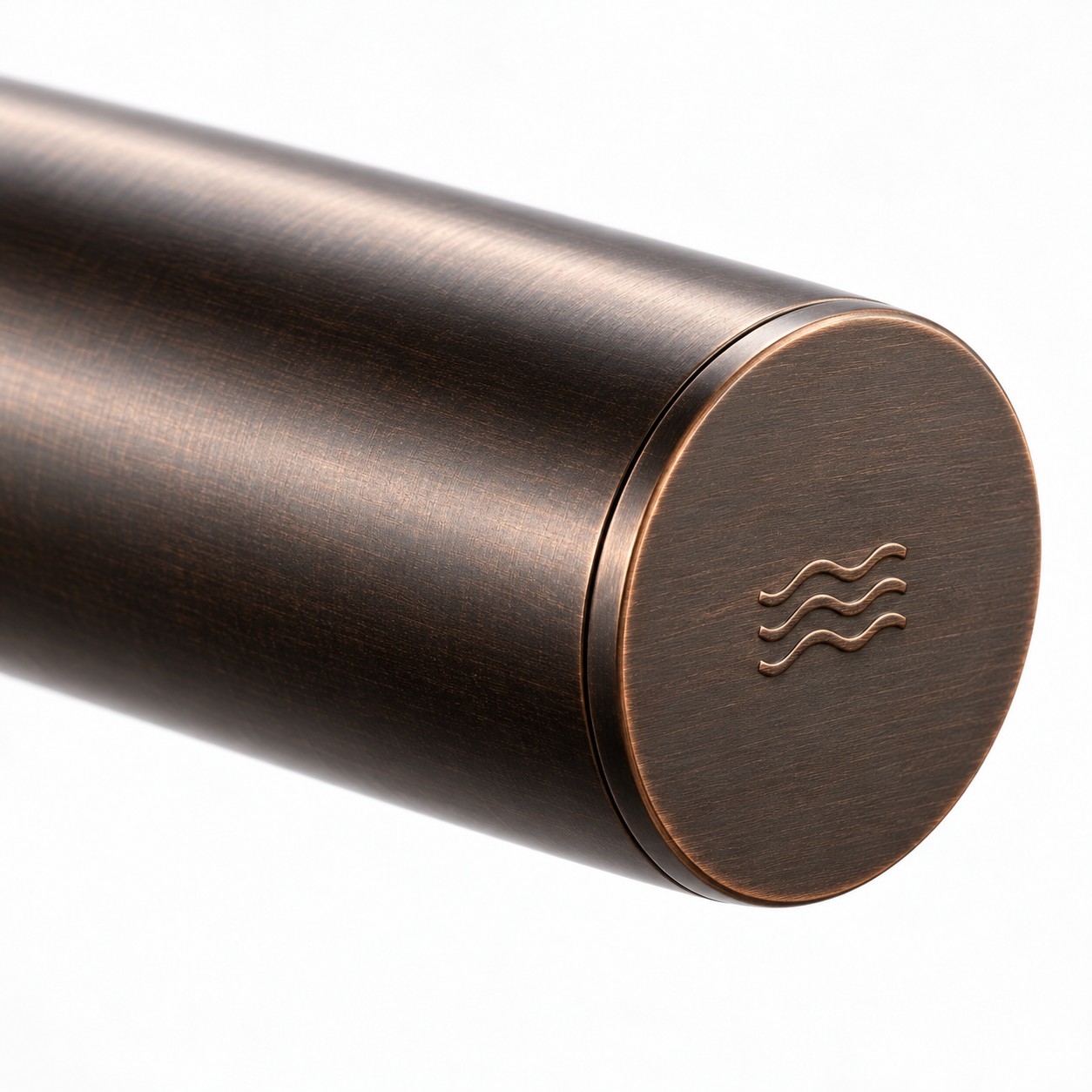

How should the polished Oil Rubbed Bronze surface be maintained in commercial use?
Remove water spots, soap residue, and fingerprints with a soft damp microfiber cloth, then dry each exposed component immediately. Use diluted pH-neutral soap only and avoid abrasive pads, acidic descalers, bleach, ammonia, metal polish, and concentrated disinfectants that may alter the bronze coloration.
Read More
- Brand Name: FontanaShowers®
- Model Number: FS10510ORB
- Type: Touchless Faucet, Dispenser & Dryer
- Main Material: Brass
- Finish: Oil Rubbed Bronze
- Mount Type: Undercounter
- Installatron Type: Deck Mounted
- Surface Treatment: Polished
- Motor: Brushless
- Voltage: 220-240 V
- Frequency: 50Hz
- Total Power: 1300W
- Standby Power: 1W
- RPM: 38000
- Hand Dryer Air Speed: 90m/s
- Temperature: 30-40degrees
- Noise Level: 75dB
- Waterproof: IP24
- Filter: HEPA
- Hand Dryer Dry Time: 310-15s
- Tap Height: Dispenser: 140.5mm, Water Tap: 140.5mm, Hand Dryer: 170mm
- Tap Width: Dispenser: 32mm, Water Tap: 42mm, Hand Dryer: 40mm
- Tap Depth: Dispenser: 191.5mm, Water Tap: 191.5mm, Hand Dryer: 223mm
- Motor Case Height: 290mm
- Moto Case Width: 210mm
- Motor Case Depth: 190mm
Distinctive Smart Hygiene Combo
|
Bronze Quality
