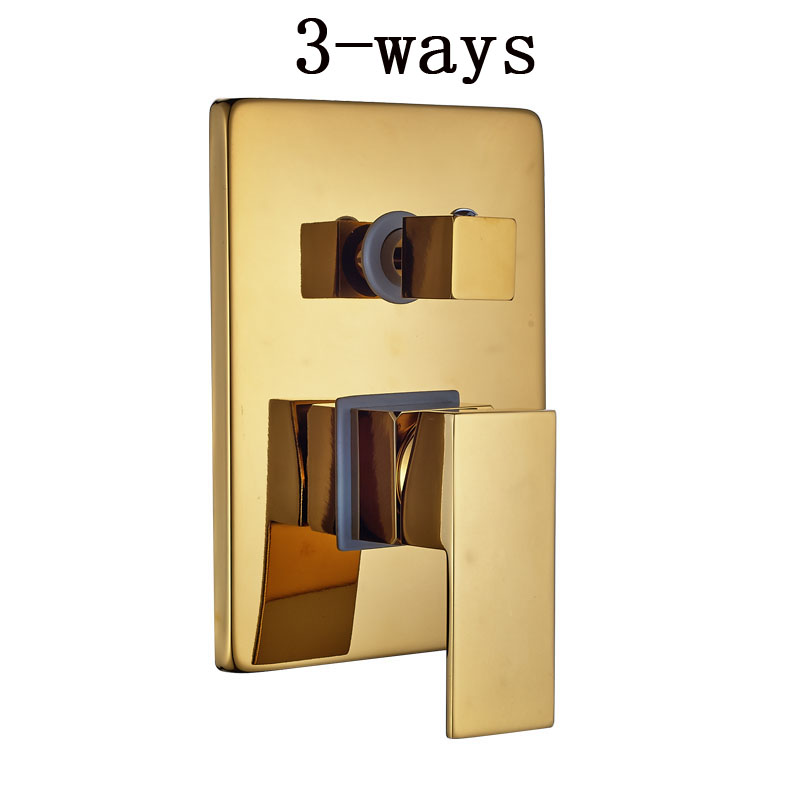

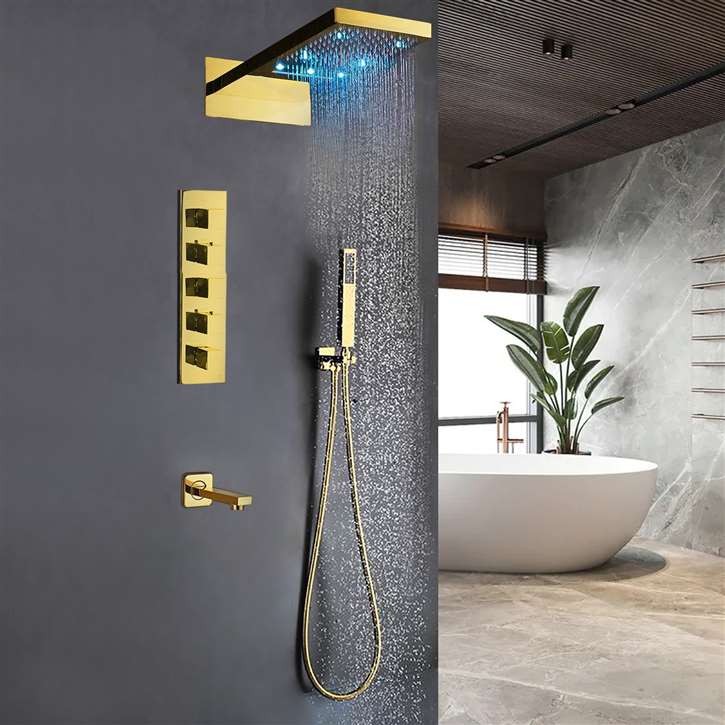

Fontana Modena Gold Waterfall & Rainfall LED Showerhead Set

This contemporary styled Medena Shower Set is a single handle rotatable set. It has a dual function shower head, waterfall and rain. The Medena Shower Set is wall mount with a gold plate finish and comes with a changing LED light feature to indicate water temperature change. When it comes to new bathroom upgrades, FontanaShowers is offering shape, finishes and styles that you've looking for. Give your bathroom an elegant glance with sink faucets and fixtures. This is one of the most trendiest finishes across decor styles in the bathroom. This has an elegant design and elevates the appeal of your decor made from the highest quality and for great tastes. It comes super seal technology inside, capable of delivering superior performance with a solid construction for long durability that will upgrade your bathroom with a modern and cool look for a long period of time.

Fontana Modena Gold Waterfall & Rainfall LED Showerhead Set Features:

Brand Name: FontanaShowers

Model Number: FS135M

Type: Bath & Shower Faucets

Type Feature: Rotatable Lifting Type

Valve Core Material: Ceramic

Cold/Hot Water Control Type: Single Holder Dual Control

Style: Contemporary

Number of Handle: Single Handle

Surface Treatment: Polished

Size: 5.2"-7.9" (131-200mm)

Feature: LED Light

Surface Finish: Gold

Shower Head Material: Brass

Shower Head Size: 21.6" x 9 " (55x23cm)

Exposed Shower Faucet Feature: Without Slide Bar

Bath & Shower Faucet Type: Exposed Shower Faucets

Installation Type: Wall Mount

Shower Head Function: waterfall and rainfall

LED Power Source: Water Flow

LED Color Change: Water Temperature

FontanaShowers® Product Warranty Information

Before you begin, please read the installation instructions below. Observe all local building and safety codes.

Unpack and inspect the product for any shipping damages. If you find damages, do not install.

Please note all showers must be installed by a professional and certified plumber otherwise warranty might be voided.

Installation
Instructions

Shower Head Installation Instructions

Step 1:	shower	head	Step 2:

Open the top cover and drill according to the marked position. 1. Mark by the position of the four holes. 2. Take care to avoid wires and pipes to prevent damage. 3. Be sure to confirm that the four holes are on the same horizontal line.			Remove the protective cover (F). Mark the positions and drill holes to suit the anchors (A). Install the anchors (A) and fix the rough-in valve (B) into the wall with screws. Use a level to ensure that the rough-in valve (B) is straight and level. (Important: Flush the water supply to remove any dirt and debris before installing the valve body).
Shower Head Installation Instructions
Step 3:			Step 4:

Wrap Teflon tape around the pipe threads and connect water supply lines and in-wall pipes (not included) as desired to the rough-in valve (B). Turn on the water supply and open the cartridge to check for leakage. Then put on the protective cover and finish the wall surrounding the valve. (Note: Test the water pressure after the pipe connections have been made and before the finished wall material is installed).			Two inlet fittings are connected to the pipe joint of the wall; then the nut, expansion screw, and inlet pipe are connected.
Shower Head Installation Instructions
Step 5:			Step 6:

Reinstall the top cover.			Fix the escutcheon (D) to the showerhead (E) with screws (C).
Shower Head Installation Instructions

Step 7:

Remove the protective cover when the finished wall is completed. Then, install the showerhead (E) and press it against the finished wall.

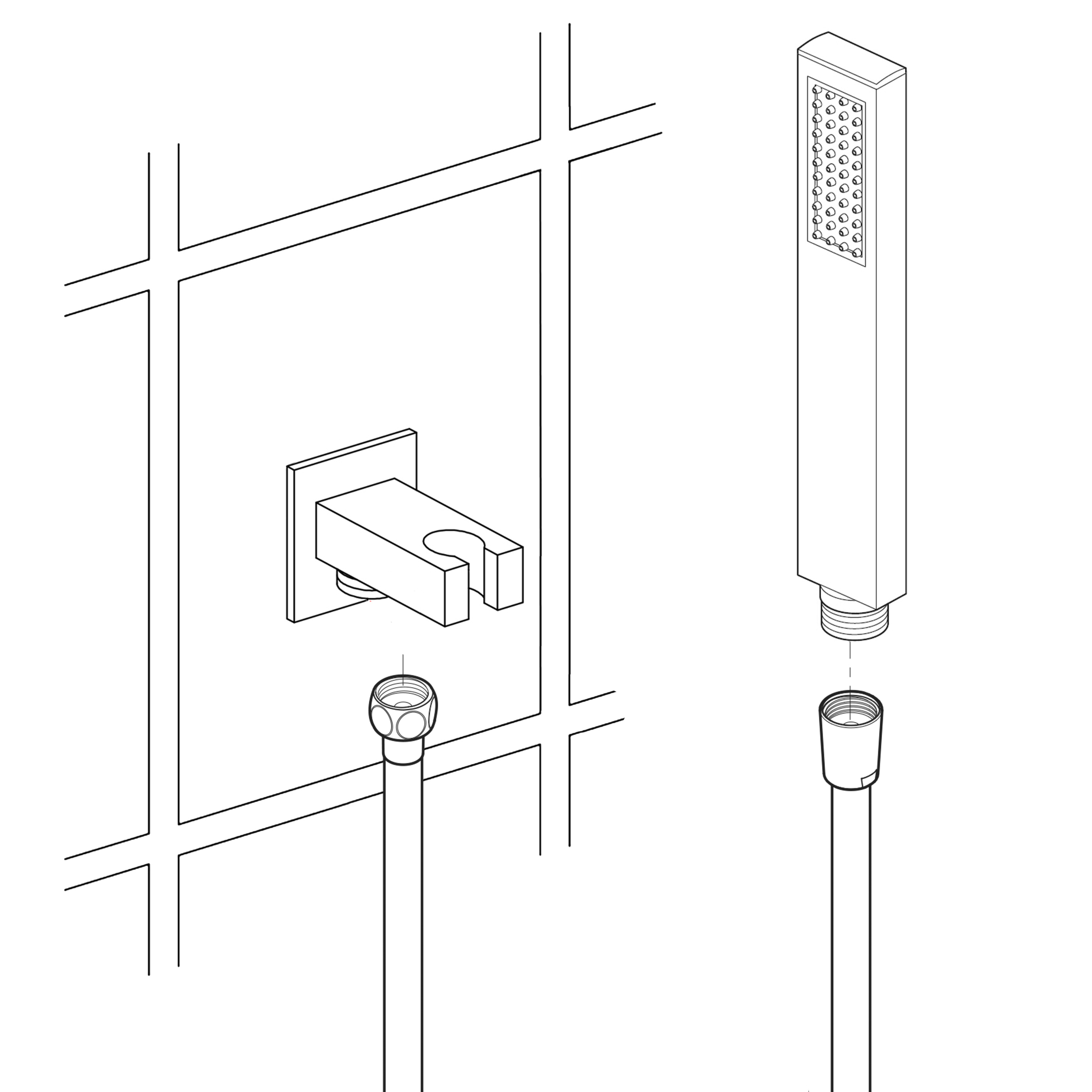

Hand Held Shower Installation Instructions

Step 1:		Step 2:
	Hand Held Shower		Hand Held Shower

Step 3:

Hand Shower Outlet Installation • Complete the outlet pipework ensuring it ends in an appropriate 15mm x 1/2" BSP female thread elbow. Note: This fitting is not supplied as variations in installations require the selection of a suitable solder or compression fitting. • Install the 'Wall Outlet', thread long male 1/2" BSP into the appropriate female fitting using PTFE tape to give a watertight joint. Note: The thread can be cut to size if required. Make sure that all debris is removed from the connector and the section that has been cut is dressed correctly, before installation.
